●Body size: φ110 (including rotor) x H89 (mm)
●"Doraemon" body size: W48.8 x H58 x D39.3 (without rotor) (mm)
●Body weight: 19g
●Transmitter size: W116 x H89 x D36 (mm)
Package size: W185 x H245 x D118 (mm)
Target age: 10 years old and over

● "Flying Doraemon" body
● Transmitter
● Instruction manual
● USB cable
● Spare parts Rotor (1 set)
● Paper display stand

■Length 472mm
■Width 350mm
■Height 198mm
■Wheelbase 295mm
■Tread F/R 278mm
■Tires（F & R） φ128 x 70mm
■Gear Ratio 15.22：1
■Weight 3,610g (approx.)
■Motor TORX10L Brushless Motor kv2850

<Readyset Contents>
●Factory assembled chassis complete with control linkages
●Pre-cut and painted body complete with decals applied
●2.4GHz Syncro KT-231P+ transmitter
●1.5mm/2.0mm/2.5mm L shaped hex wrench
●Cross wrench
●4/5/5.5/7/10mm Integrated spanner

<Required for Operation>
●AA-size batteries x 4 for transmitter
●Battery for driving (2-3S LiPo battery *Installable battery size 143x47x30mm)
●Charger for LiPo battery

■Length 472mm
■Width 350mm
■Height 198mm
■Wheelbase 295mm
■Tread F/R 278mm
■Tires（F & R） φ128 x 70mm
■Gear Ratio 15.22：1
■Weight 3,610g (approx.)
■Motor TORX10L Brushless Motor kv2850

<Readyset Contents>
●Factory assembled chassis complete with control linkages
●Pre-cut and painted body complete with decals applied
●2.4GHz Syncro KT-231P+ transmitter
●1.5mm/2.0mm/2.5mm L shaped hex wrench
●Cross wrench
●4/5/5.5/7/10mm Integrated spanner

<Required to operate>

●AA-size batteries x 4 for transmitter
●Battery for driving (2-3S LiPo battery *Installable battery size 143x47x30mm)
●Charger for LiPo battery

■Length 383mm(Including body)
■Width 323mm(Including body)
■Height 200mm(Including body)
■Wheelbase 274mm
■Tread (F/R) 250mm
■Tires (F/R) φ110×70mm
■Gear Ratio 11.69:1
■Motor G14L
■Weight 2,050g (approx.)(When using 7.2V3600 NiMH)

<Readyset Contents>
●Factory assembled chassis with built in R/C unit
●Factory finished body with decals applied
●Syncro KT–231P+ transmitter
●Hex wrench
●Integrated spanner
●Setting change parts

<Required for Operation>
●4 x AA batteries for transmitter
●Battery for chassis (recommended: 7.2V Ni-MH battery)
●Charger for battery for chassis
●Tools

■Length (Including body) 456mm
■Width205mm (Excluding mirrors)
■Chassis Height 8mm (approx.)
■Height (Including body) 138mm
■Wheelbase 260mm
■Tread（F／R） 174mm
■Tires（F／R） φ66×25mm
■Gear Ratio 6.54：1
■Weight 約1650g
■R/C system &; Syncro KT-231P+
■Motor G14L

<Kit Contents>
●Completed chassis with R/C radio installed
●Factory assembled body complete with color scheme
●Syncro KT-231P+ transmitter
●Hexagonal wrench
●Spanner
●Setting change parts

<Required for Operation>
●4 x AA batteries for transmitter
●Battery for chassis (recommended: 7.2V Ni-MH battery)
●Charger for battery for chassis
●Tools

■Length 498mm
■Width (Body width * excluding mirror) 210mm
■Height 136mm
■Wheelbase 274mm
■Tread (F/R) 167mm
■Tires (F/R) φ64×27.7mm
■Gear Ratio 6.54：1
■Weight  1650g (approx.)
■R/C system  Syncro KT-231P+
■Motor  G14L

<Required for Operation>
●4 x AA batteries for transmitter
●Battery for chassis (recommended: 7.2V Ni-MH battery)
●Charger for battery for chassis
●Tools

<Required for Operation>
●4 x AA batteries for transmitter
●Battery for chassis (recommended: 7.2V Ni-MH battery)
●Charger for battery for chassis
●Tools

■Length 340mm
■Width 172mm
■Height 83mm
■Chassis type Chain drive4WD
■Wheelbase 199-200mm（Adjustable）
■Tread F:135mm/R:133mm
■TireF:φ48×23mm/R:φ53×35mm
■Gear ratio 3.38：1
■Weight approx.890g(with GAB4201）
■Motor 540class（both sold separately）
■Used propo 2ch 1servo 1ESC
■※Maximum Speed 約55km/h (with Le Mans480T BL）
■※Driving Time approx.23minutes(with Le Mans480T BL）

※Depends on driving conditions

<Kit Contents>
●Chassis kit
●Adhesive shaped tire
●Unpainted body
●Decal
●Wheel wrench（12/4.0）
●5.5/4.5wrench
●FRP shock wrench

<Required for Operation>
●Radio transmitter with 2 channel, 1-servo(Receiving size:L37xW30xH16.5mm)
●1 Electronic speed controller (ESC size：38x31x23mm)
●540 Motor
●Battery for chassis(Battery size：138x48x24.5mm)
●Batteries for transmitter
●Charger for Battery
●Paint for body

■Length 167.5mm
■Width 75.0mm
■Height 46.0mm
■Wheelbase 98.0mm (LL)
■Tread F:64.5mm R:62.0mm
■Chassis RWD (MR-03)
■Motor Mount MM
■Front Wheel Offset Narrow +1.5mm (for RWD)
■Rear Wheel Offset Wide +1.5mm (for RWD)
■R/C System Syncro KT-531P

<Readyset Contents>
●Factory assembled chassis
●Pre-painted plastic body, complete with markings
●2.4GHz Perfex KT-531P 2.4GHz transmitter
●Front tread adjustment parts set
●Front suspension adjustment spacers
●Pinion gears 6T, 7T, 8T, 9T
●Wheel wrench
●Pinion gear tool
●Spare nuts
●Pairing stick
●Tires, wheels

<Required for Operation>
●AAA-size alkaline batteries x 4 or Ni-MH batteries x 4 for chassis.
●AAA-size alkaline batteries x 4 for transmitter

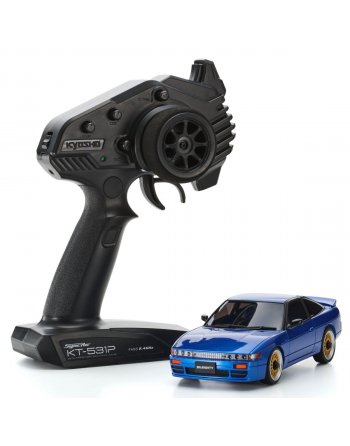

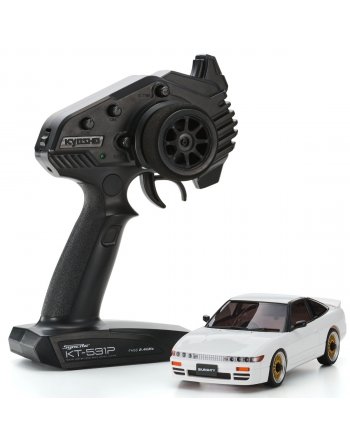

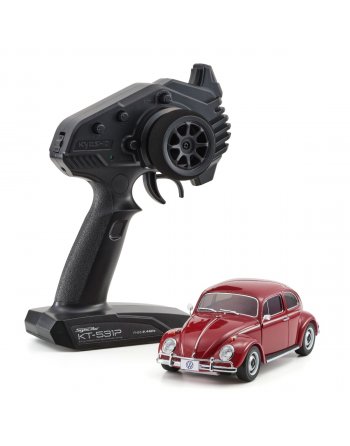

■Length 161.0mm
■Width 72.0mm
■Height 52.0mm
■Wheelbase 94.0mm（L）
■Tread F : 61.5mm R : 59.0mm
■Chassis MA-020-N
■Front Wheel Offset Narrow +2.5mm
■Rear Wheel Offset Wide +-0.0mm
■R/C System Syncro KT-531P

<Ready set contents>
● R / C unit built-in complete chassis
● Painted and marked complete body
● Ｓyncro KT-531P transmitter
● Mini pylon
● Pinion gear (15T, 17T, 19T, 21T)
● Spur gear (27T, 29T, 31T)
● Spare nut
● Wheel wrench
● Pinion removal tool

＜ Required for Operation ＞
●AAA-size alkaline batteries x 4 or Ni-MH batteries x 4 for chassis.
●AAA-size alkaline batteries x 4 for transmitter

■Length 177mm
■Width 78mm
■Height 47.5mm
■Wheelbase 98mm （LL）
■Chassis RWD (MR-03)
■Motor Mount MM
■Front Wheel Offset Narrow +3.0mm (for RWD)
■Rear Wheel Offset Wide +3.0mm (for RWD)
■R/C System Syncro KT-531P

<Readyset Contents>
●Factory assembled chassis
●Pre-painted plastic body, complete with markings
●2.4GHz Perfex KT-531P 2.4GHz transmitter
●Front tread adjustment parts set
●Front suspension adjustment spacers
●Pinion gears 6T, 7T, 8T, 9T
●Wheel wrench
●Pinion gear tool
●Spare nuts
●Pairing stick
●Tires, wheels

<Required for Operation>
●AAA-size alkaline batteries x 4 or Ni-MH batteries x 4 for chassis.
●AAA-size alkaline batteries x 4 for transmitter

Option parts for Hang-on Racer

Option parts for Hang-on Racer

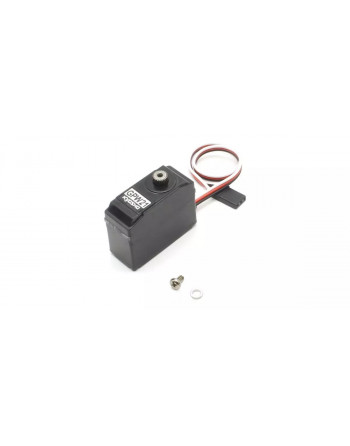

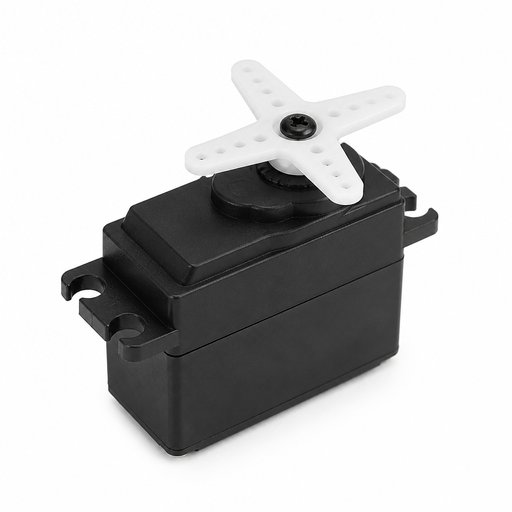

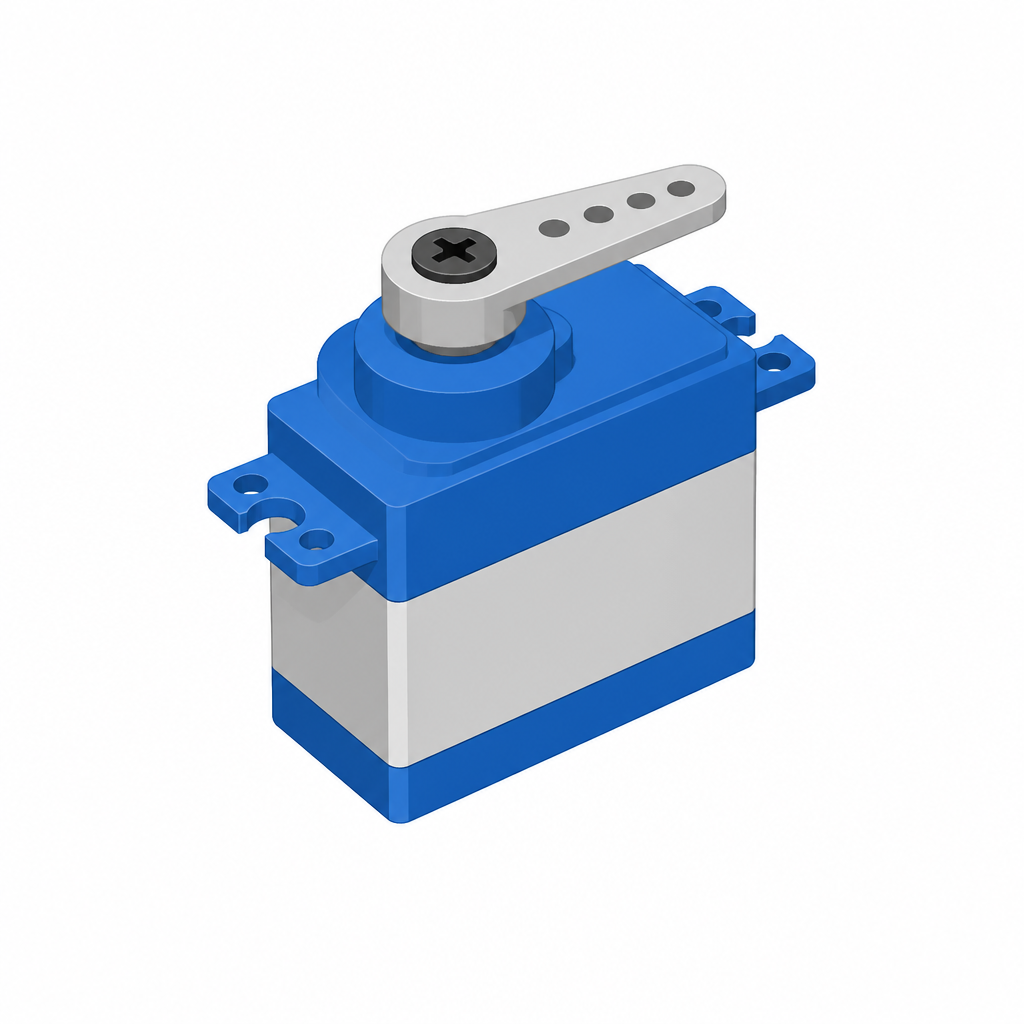

Mini steering servo for the Hang On Racer. Bolt on ready. 150mm wire with JR type no flange connector housing. Screw and aluminum collar included.

Option parts for Hang-on Racer

Greatly suppresses vibration and instability of steering control. Increases stability during high speed cornering, acceleration and braking.

Option parts for Hang-on Racer

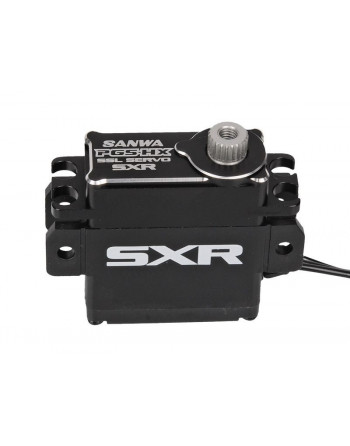

[Specifications]

#Torque: 31.6Kg-cm Speed: 0.11sec/60deg(@7.4V)
#Torque: 26.3Kg-cm Speed: 0.13sec/60deg(@6.0V)

Reference Spec
#Torque: 33.0Kg-cm Speed: 0.09sec/60deg(@8.4V)

#Dimensions: 40.4×37.5×20mm (Standard size)
#Weight: 75.2g
#Servo Lead: 230mm
#Operating voltage: 6.0～7.4V (Lipo, Life, Ni-MH)
#Core-less motor
#Reinforced stainless steel final gear
#Hard alumite aluminum gear
#Dual ball bearings
#Hard servo gear shaft
#Aluminum top case
#Aluminum heat sink middle case
#Black cable
#Gold plated connector
#Serial Compatible
#HCS Compatible

#Recommend category
 1/8 Off road, 1/8 On road, 1/8GT. Crawler

Made in Japan.

[Specifications]

#Input voltage: Minimum 5.0V/Maximum 10.0V
#Instant maximum current: 14.0A
##Continuous maximum current: 8A
## Current by self consumption: Maximum 1mA in standby.
      (when all of 7 segment LED lights maximum 10mA)
#Dimensions: 39.2x17.5x9.5mm(Excluding protrusions)

#cable length(input/Battery): 80mm
#cable length(Output/Receiver): 180cm
#Weight: 10.0g

Made in Japan

■Length  563mm
■Width  414mm
■Wheelbase 384-389mm
■Tread（F/R） 353mm(approx)
■Tires（F/R） For stadium track(Sold separately)
■Gear Ratio 14.12:1
■Weight  4,200g (approx)
■Transmitter 2ch or more 1 servo /1 ESC(Sold separately)

＜Kit Contents＞
●Unassembled chassis kit
●Clear body
●Decals
● Hexagonal wrench (1.5mm、2.0mm、2.5mm、3.0mm)
●Cross wrench
●17mm wheel wrench

＜Required for Operation＞
●2ch～3ch transmitter & receiver for R/C cars
●Servo (high torque servo recommended)
●Motor(for 1/8)
●ESC
●Battries for chassis(7.4vLipox2 Recommendation）
●Charger
●Stadium truck tire
●Wheel
●Inner sponge
●Color for body painting
