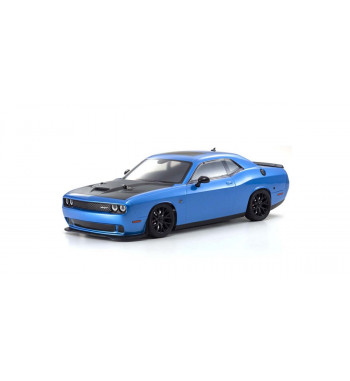

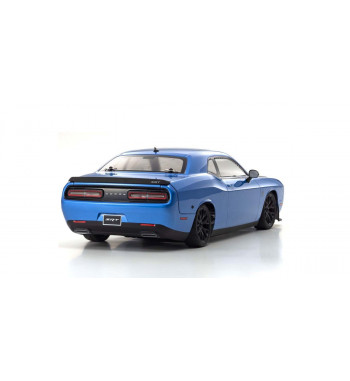

34415T2 4WD FAZER Mk2 FZ02L 2015 Dodge Challenger SRT Hellcat B5 Blue 1:10 Scale Radio Controlled Electric Powered

SGD319.00

■Length   486mm
■Width  (Body width) 190mm(200mm)
■Height 144mm
■Wheelbase   274mm
■Tread (F/R)     F:174mm/R:174mm
■Tires (F/R)     F:φ66×25mm/R:φ66×25mm
■Gear Ratio     6.5:1
■Weight        1650g (approx.)
■R/C system      Syncro KT-231P+
■Motor      G14L

Quantity



Security policy (edit with Customer reassurance module)



Delivery policy (edit with Customer reassurance module)



Return policy (edit with Customer reassurance module)

"The American muscle car" Dodge Challenger SRT Hellcat "that everyone longs for is reproduced with a high quality body! "

For the pure enjoyment of R/C car driving, the combination of a beautifully reproduced car body with the FAZER series chassis can’t be beaten. Kyosho has taken its standard touring car chassis and given it a full model makeover that has evolved performance to a new level. A simplified design with fewer parts has improved maintenance efficiency and reduced weight while core strength and rigidity has been increased through new materials and ribbing and stiffeners on front and rear. In addition, the symmetrical chassis design synergizes excellent front-rear balance through the suspension with responsive control, irrespective of power source. Featuring front & rear gear differentials, oil shocks and full ball bearing specs, the high durability and impact resistance allows drivers to unleash the full potential of the chassis. Brake disc wheel hubs with two different offsets (0mm, +5mm) provide compatibility with 190mm and 200mm width body styles and allows the wheelbase to be adjusted to 260mm by replacing some parts (sold separately) for compatibility with other 1/10 scale body styles, in addition the body included. The Readyset package comes fully assembled and includes everything except charger and battery for the chassis, and batteries for the transmitter.


●“Ultra Scale Body” replicates the fine details of the actual body of the car. Kyosho took a step further in scale realism.


technical-image-01

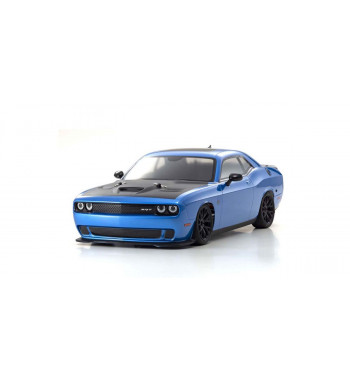

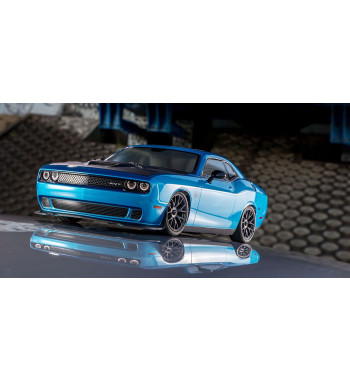

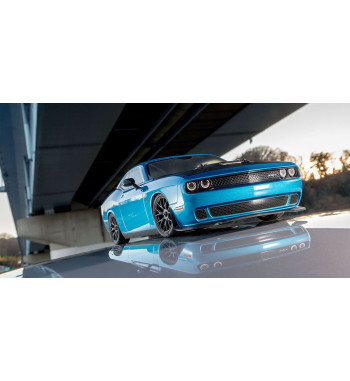

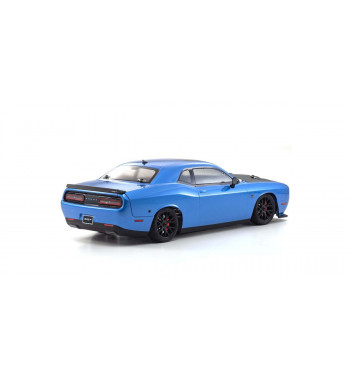

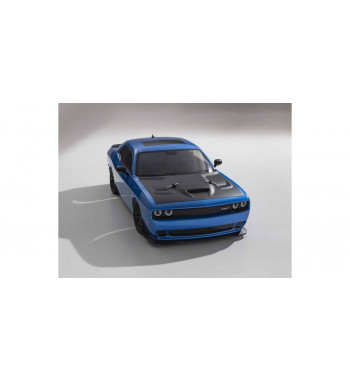

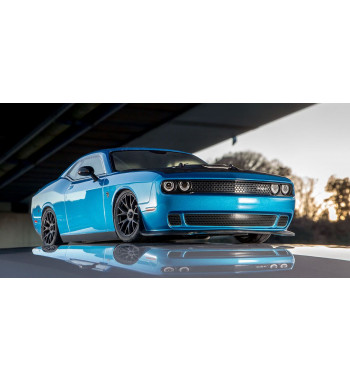

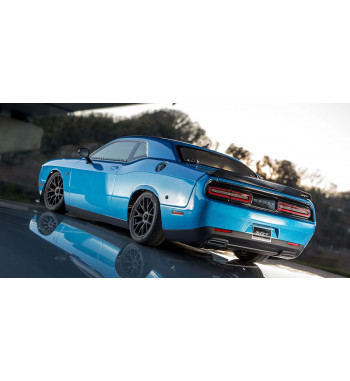

Mounted on the FAZER Mk2 touring car chassis is the awesome polycarbonate American muscle car body form of the Dodge Challenger SRT Hellcat with its supercharged 6.2L V8 outputting a maximum of 717ps and 89.7kg/m.
technical-image-02

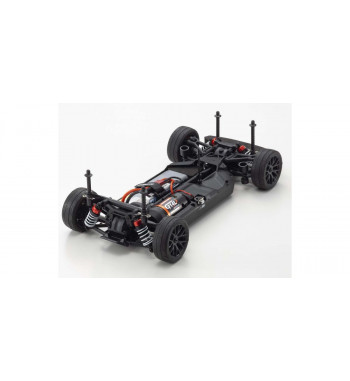

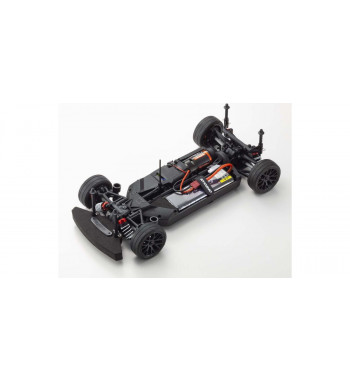

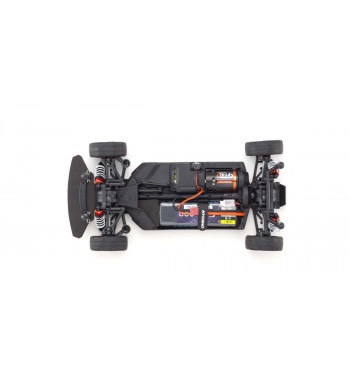

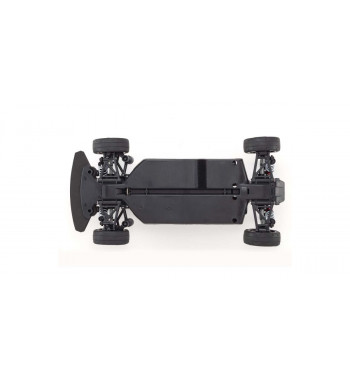

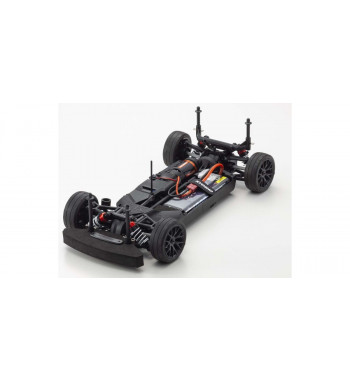

Simple low center of gravity upper deckless chassis design features an electronic speed controller and receiver cover as well as a one-piece gearbox that optimizes main chassis torsional rigidity and strength while reducing weight with the introduction of lightweight impact-resistant nylon.
technical-image-03
Features a reduced number and variety of screws and parts, and consolidation of frequently used screws into the same size. Most screws are flat head screws that can be removed with a 2.0mm hex wrench for easy disassembly.
technical-image-04
Handling factors such as bump steer and scrub radius are optimized on front suspension. Simple ball-connected steering knuckle promises reliable control movement. Interchangeable on both front and rear left-right hub carriers optimize spare parts utilization and improve maintenance efficiency.
technical-image-05
Oil shocks mark an evolutionary step up from previous models Oil shock is newly designed. Optimal front-rear geometry and balance simultaneously delivers both light handling and precise control.
technical-image-06
Standard spur and pinion gear setting is 68T and 32T, but 9 pinion gear settings can be used from 29T – 37T to produce a wide range of gear ratio settings. Also, motor is mounted directly according to the pinion gear modules.
technical-image-07
Original low-profile semi-slick pattern tires produce superior performance.
technical-image-08

Comes with the new powerful 550 size 14T brushed motor(G14L). The long can with Steel ring around the motor case and internal cooling fan provides efficient torque and high speeds.




technical-image-09

Front grille compatible with the separately sold 97054 LED light unit series.By installing the LED light unit, improves scale realism for body shell.

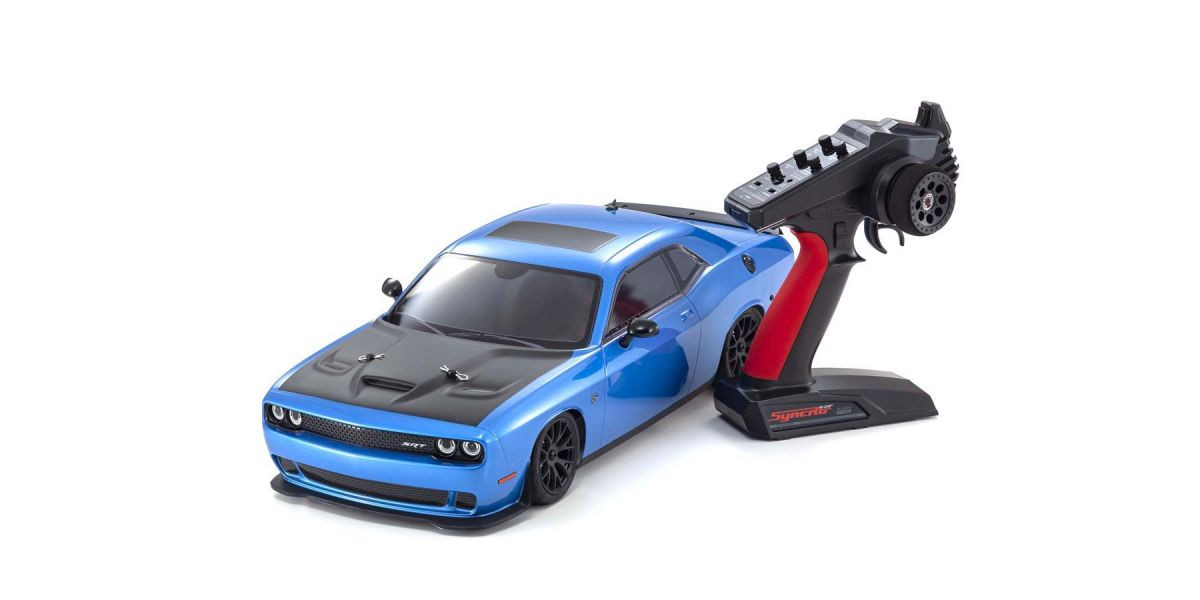

 <Kit Contents>

●Completed chassis with R/C radio installed
●Factory assembled body complete with color scheme
●Syncro KT-231P+ transmitter
●Hexagonal wrench
●Spanner
● Setting change parts
<Required for Operation>
●4 x AA batteries for transmitter
●Battery for chassis (recommended: 7.2V Ni-MH battery)
※Recommendation :SPEED HOUSE 7.2V 22HV Ni-MH Battery 71322
                                             SPEED HOUSE 7.2V 36HV Ni-MH Battery 71324
●Charger for battery for chassis
※Recommendation :SPEED HOUSE C-02B AC PEAK CHARGER 72002
                                             7.2V USB Charger for NiMH 72203
●Tools
