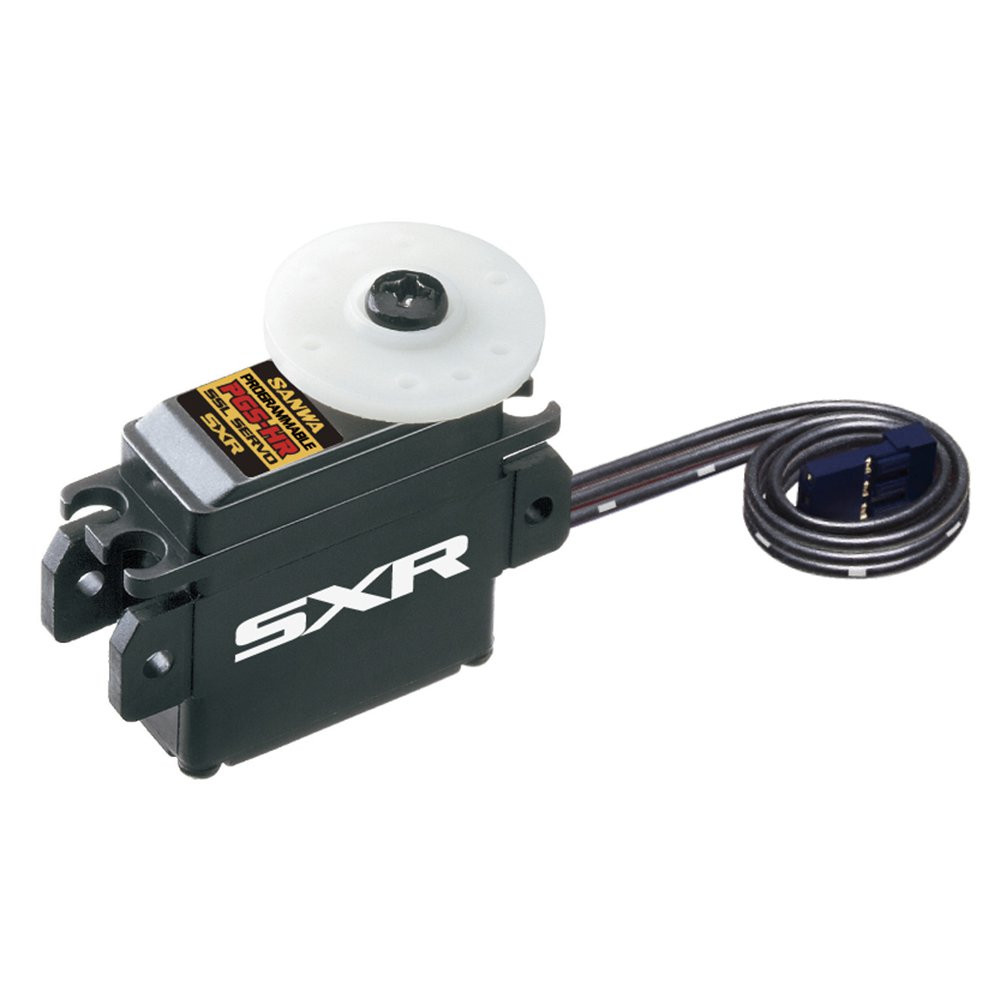

SWPGSHR PGS-HR for 1/12 scale

SGD99.00

●FH5U: SXR(SANWA XTREME RESPONSE) MODE-COMPATIBLE
●SSL-COMPATIBLE PROGRAMMABLE SERVO
# Compatible with CODE 10 (M12S, EXZES ZZ, MT-44)
Not Compatible with CODE 5 (M12, EXZES Z, MT-4S, MT-4, MT-S)
●PGS SETTING GEAR-COMPATIBLE
●Specialized for 1/12 models
●LiPo (1 & 2cell) Battery Support
●Digital Servo
●Coreless Motor
●Full metal gear

Quantity
Last items in stock



Security policy (edit with Customer reassurance module)



Delivery policy (edit with Customer reassurance module)



Return policy (edit with Customer reassurance module)

Speed

0.10 sec / 60° (6.0 V)
0.16 sec / 60° (3.7 V)

Torque

5.8 kg・cm (6.0 V)
3.8 kg・cm (3.7 V)

Dimensions

27.0 x 21.1 x 30.5 mm

Weight

24 g

●Programmable Servo to be compatible with SSL & Telemetry at Launch
●Setting Adjustment by wireless from Radio
●Setting Adjustment to connect Servo with Setting Gear
●Regarding Temperature, Current, Voltage and Volume Position on Servo inside,
Telemetry-transmission can be passed to Radio.
# Initial Setting on Setting Gear is necessary.


★Setting Items
●SSL-CH (SSL Channel Setting) ●STRETC (Stretcher Adjustment) ●BOOST (BOOST Adjustment)
●D-Band (Dead Band Adjustment) ●MV-MID (Middle Torque Adjustment)
●MV-END (Later Torque Adjustment) ●BREAK (Break Adjustment)
◎MV-HOLD (Power Adjustment at whole area) ◎MV-FRQ (Feeling Adjustment at whole area)
◎MAX-PW (MAX Duty Adjustment)
※ Setting Gear is necessary for ◎setting.
●PGS-Servo Explanation

Sanwa
SWPGSHR
