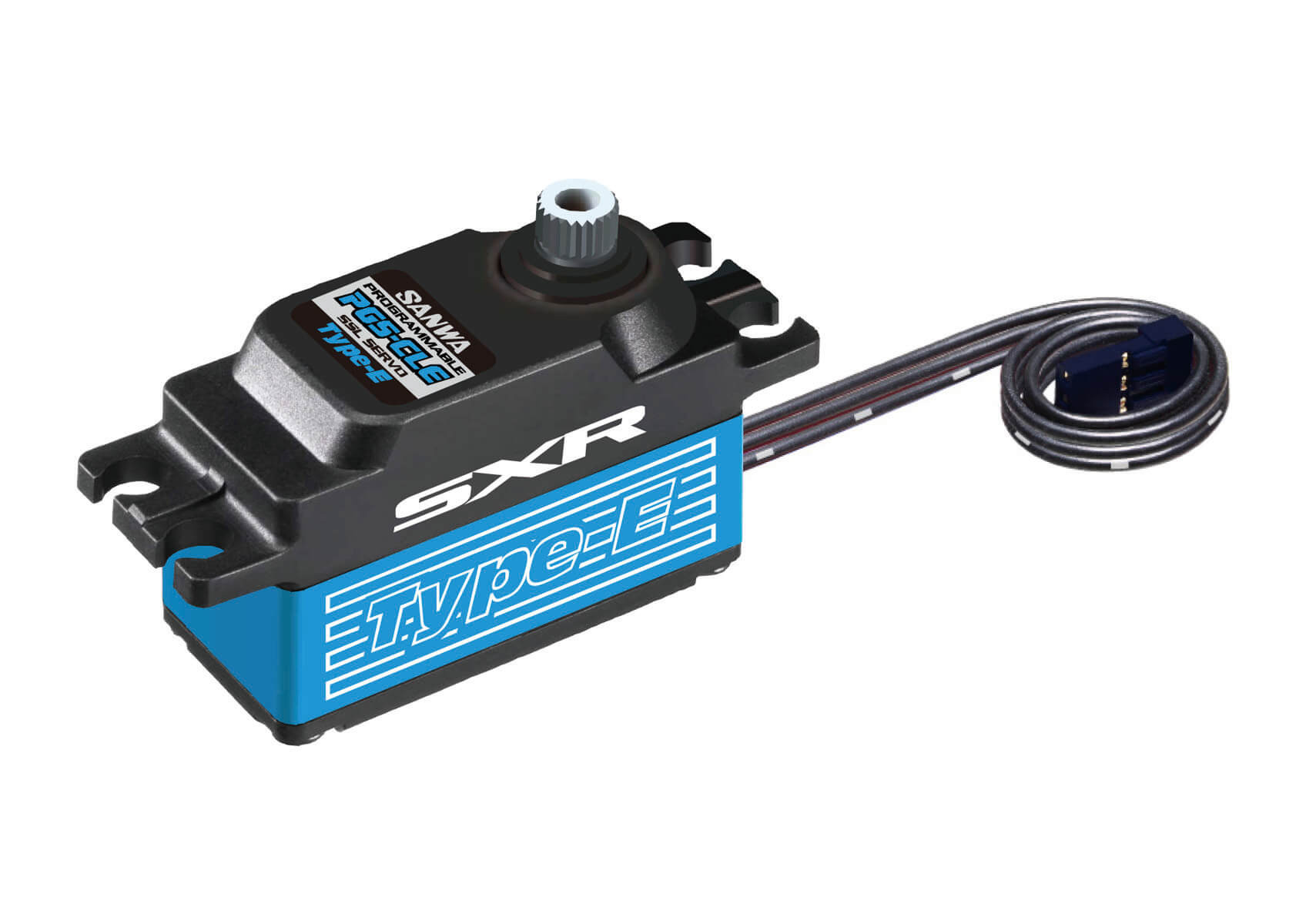

SWPGSCLE PGS-CLE Low Profile Waterproof SXR Sanwa Xtreme Response

SGD99.00

●FH5U: SXR(SANWA XTREME RESPONSE) MODE-COMPATIBLE
●SSL-COMPATIBLE PROGRAMMABLE SERVO
# Compatible with CODE 10 (M17, M12S (RS), EXZES ZZ, MT-44)
Not Compatible with CODE 5 (M12, EXZES Z, MT-4S, MT-4, MT-S)
●PGS SETTING GEAR-COMPATIBLE
●SUPER RESPONSE (SSR) MODE-COMPATIBLE
●HIGH RESPONSE (SHR) MODE-COMPATIBLE
●Li-Po 2 CELL-COMPATIBLE
●HIGH TORQUE TYPE
●BRUSH LESS MOTOR
●FULL ALUMINUM CASE
●FULL METAL GEAR (Strengthening Gears)
●AL HEAT SINK
●Black Harness
●Waterproof (Same as IPX4)
●3 different Type of Preset (Base, Quick, Drift)
*Choosing presets is required by Multi Setting Gear

Quantity
Last items in stock



Security policy (edit with Customer reassurance module)



Delivery policy (edit with Customer reassurance module)



Return policy (edit with Customer reassurance module)

Speed

0.09 sec/60° (7.4V)
0.11 sec/60° (6.0V)

Torque

12.8 kg●cm (7.4V)
10.8 kg●cm (6.0V)

Dimensions

40.5 x 20.5 x 26.5 mm

Weight

50.4 g

●Programmable Servo to be compatible with SSL & Telemetry at Launch
●Setting Adjustment by wireless from Radio
●Setting Adjustment to connect Servo with Setting Gear
●Regarding Temperature, Current, Voltage and Volume Position on Servo inside,
Telemetry-transmission can be passed to Radio.
# Initial Setting on Setting Gear is necessary.


★Setting Items
●SSL-CH (SSL Channel Setting) ●STRETC (Stretcher Adjustment) ●BOOST (BOOST Adjustment)
●D-Band (Dead Band Adjustment) ●MV-MID (Middle Torque Adjustment)
●MV-END (Later Torque Adjustment) ●BREAK (Break Adjustment)
◎MV-HOLD (Power Adjustment at whole area) ◎MV-FRQ (Feeling Adjustment at whole area)
◎MAX-PW (MAX Duty Adjustment)
※ Setting Gear is necessary for ◎setting.

●PGS-Servo Explanation

  • Download
  • PDF
  • PDF
Tips for PGS-CLE
PGS-CLE is developed for low power supply ESC.
Low class ESC model BEC (Battery Eliminator Circuit) sometimes cannot supply enough power for servo.
3 different types preset can be set.
1. BASE (Standard mode)
2. QUICK (Aggressive mode)
3. DRIFT (Drift mode)
PGS-CLE can be stable working even if cannot supply enough power from ESC.
PGS-CL & CL II dimension_rev.jpg
