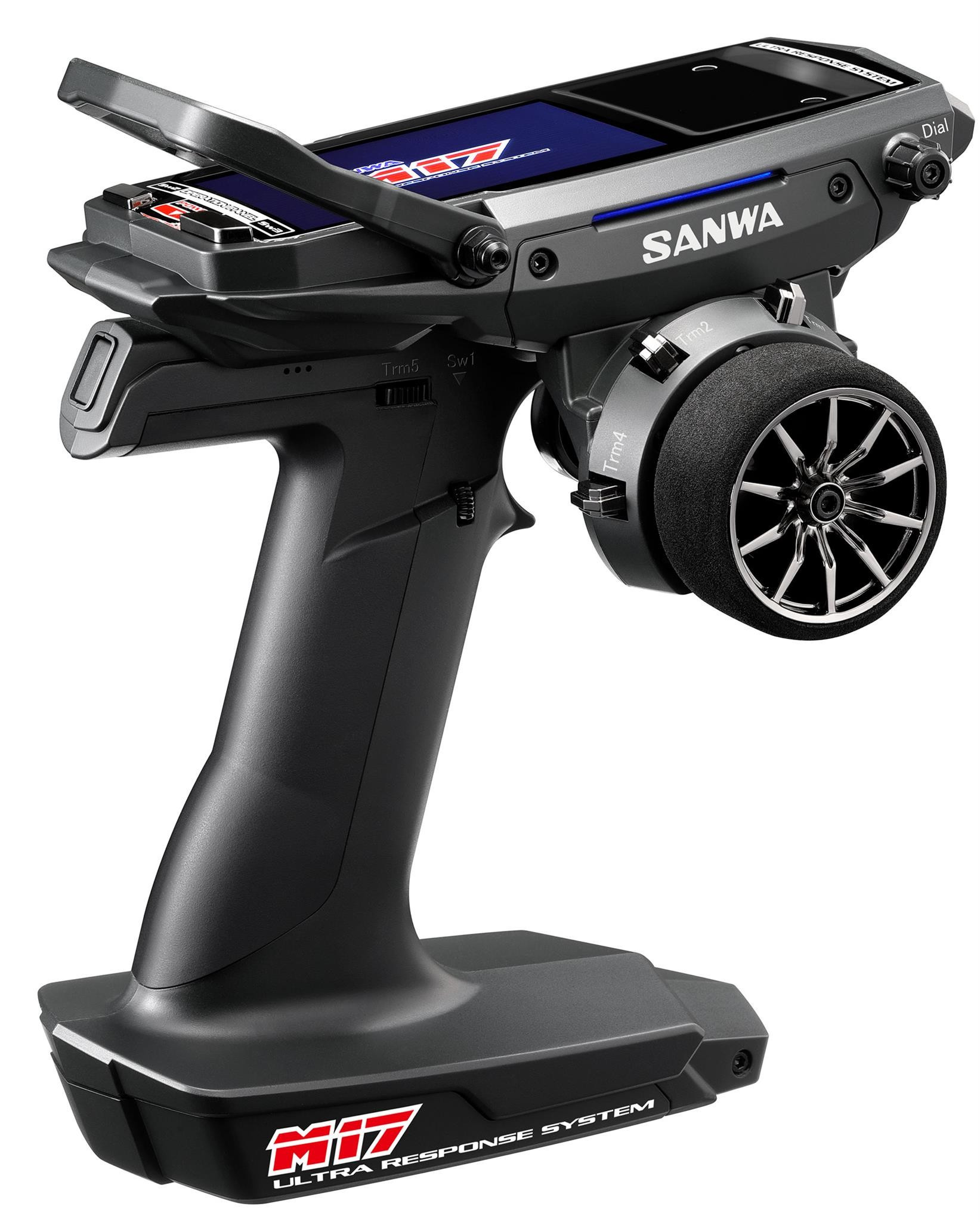

Sanwa M17 with RX493 2.4GHz ultra response radio system
World Fastest Response!!
■Ultra Response Mode (SUR) New Transmitter system "FH5" makes new record of the World Fastest Response.
■Color Display and Touch Panel are easy to control.
■Light weight (about 510g) and high rigidity than M12S
■Steering and Throttle Position Optimization and Steering Swing Adjust Function
■Detachable Throttle Unit is available to change spring by drivers (World First)
Update contents are in the below.
Fix Bug for R-MODE copy
[Steps for M17 firmware update]
1. Download the firmware Ver.1.01.10. and unzip folder.
2. Please make "M17" folder in root directory if Micro SDHC card never use for M17. Then, make "update" folder in M17 folder.
3. Save unzipped "M17.prg" and "M17.res" in the "update" folder
4. Insert the micro SD card to M17. (Please take care of Micro SD direction)
5. Go to SYSTEM menu and choose SD-CARD.
6. Click to FIRMWARE and enter [UPDATE].
7. Display "UPDATE OK?" and choose "YES"
8. Start Update and wait until finish
9. When finished update, will display "COMPLETE !"
10. After M17 was restarted, it require update firmware.
11. Go to System and choose SD-CARD.
12. Select LAUNGUAGE and UPDATE.
13. After finished, will display "COMPLETE!"
14. M17 firmware update is completed.
* In case of updating, sometimes M17 will be turned off three times during the updating.
Please turn on the power button if display was black out. (DO NOT take off Micro SD card).
updating will be restart.
*Please DO NOT TURN OFF M17 or DO NOT TAKE OFF Micro SD Card during update.
*Please DO NOT UPDATE in case of LOW BATTERY.
※The firmware can be applied firmware version form Ver.1.01.03 later.
In case of using firmwareVer.1.01.00, the M17 need to be product recall.
Please contact to our distributor in your country or E-mail to firstname.lastname@example.org
Please check Multi Setting Gear Function in the below link.
→Multi Setting Gear Manual for M17.pdf
●Dull-dot Color LCD(480ｘ320) ●Switchable driving position(Left/Right) ●Touch Pad ●Built-in Antenna ●ST,TH Adjuster ●Detachable Fully Adjustable Throttle Unit ●Feeling ●Safety Link●Racing Mode ●Setup Wizard ●Dual Rate ●End Pint Adjust ●Anti-Lock Brake ●Servo Speed ●Offset ●Trim/Sub Trim ●Servo Reverse ●Curve ●Fail Safe ●Timer ●Lap ●CODE AUX ●Model Memory ●Model Name ●Model (Select/Copy/Clear/Sort) ●Direct Model Select ●RF Mode (FH5,FH4,FH3) ●Response Mode (SUR/SSR/SHR/NOR) ●Bind ●Log(REC/RPM/VOLT/TLM1/TLM2/ST Point/TH Point/RX Mode/Reading Function) ●Servo Monitor ●Key Assign ●Vibrator ●AUX Type ●Trim Type ●TH Type ●Calibration ●Custom Menu ●Mechanical Rudder Angle Adjustment ●Large Steering Wheel included ●Large/Small Grip Pad included ●Compatible RX: Telemetry-compatible(RX-491, RX-482, RX-472, RX-47T, RX-462, RX-461) , Non-Telemetry-Compatible(RX-481,RX-481WP, RX-471 Dual ID, RX-471W, RX-451R, RX-451, RX-381,RX-480)
●Grip Pad (Large/Small) ●Large Steering Wheel ●Strap Hook ●Steering Slant Parts (Right Hand/Left Hand) ●Trigger Angle Spacer ●Brake Trigger(+1/+2) ●Spring for ST and TH (Hard, Medium, Soft, Super Soft) ●Dial Cover for Lefty
