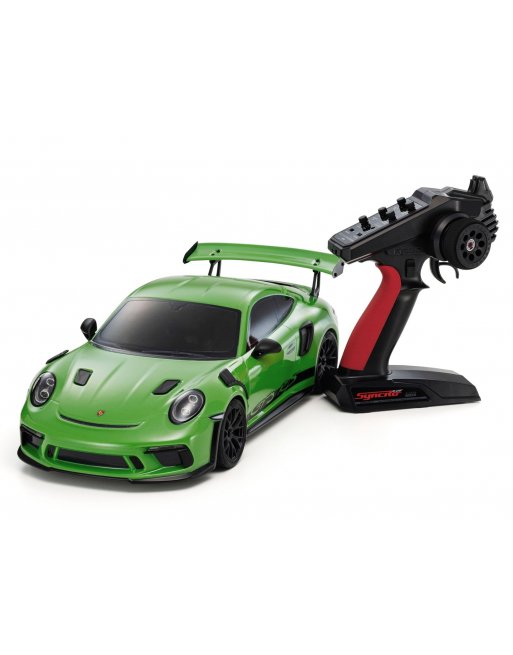

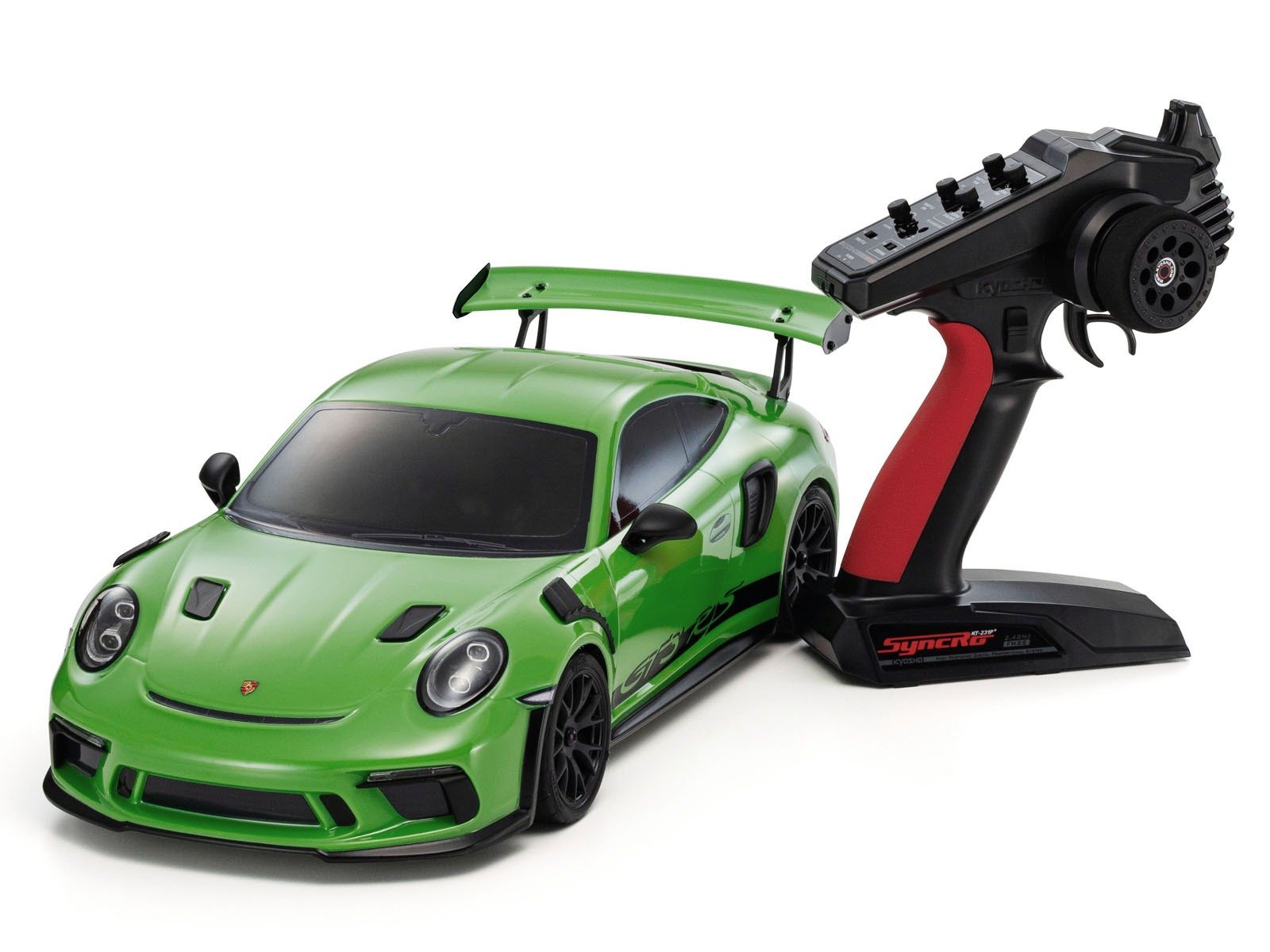

34445T1 1:10 Scale Radio Controlled Electric Powered 4WD FAZER Mk2 FZ02 Series readyset 2018 PORSCHE 911 GT3 RS Lizard Green

▼ About the FAZER Mk2

For the pure enjoyment of R/C car driving, the combination of a beautifully reproduced car body with the FAZER series chassis can’t be beaten. Kyosho has taken its standard touring car chassis and given it a full model makeover that has evolved performance to a new level. A simplified design with fewer parts has improved maintenance efficiency and reduced weight while core strength and rigidity has been increased through new materials and ribbing and stiffeners on front and rear. In addition, the symmetrical chassis design synergizes excellent front-rear balance through the suspension with responsive control, irrespective of power source. Featuring slipper clutch, front & rear gear differentials, oil shocks and full ball bearing specs, the high durability and impact resistance allows drivers to unleash the full potential of the chassis. Brake disc wheel hubs with two different offsets (0mm, +5mm) provide compatibility with 190mm and 200mm width body styles and allows the wheelbase to be adjusted to 260mm by replacing some parts (sold separately) for compatibility with other 1/10 scale body styles, in addition the body included. The Readyset package comes fully assembled and includes everything except charger and battery for the chassis, and batteries for the transmitter.

▼ POINT

●It faithfully reproduces the body, light bezels, grille, bumpers, and mirrors, and from the highly detailed “ULTRA SCALE BODY,” which can be described as a “running display model” thanks to its realistic vehicle proportions and meticulous craftsmanship down to the finest details, it has evolved into the “ULTRA SCALE BODY Plus,” featuring a clipless body mounting system that eliminates the need for body clips.
●The body mount uses the same body mounting system as the FAZER D2.
●The headlights, front position lamps, and taillights are made from transparent injection-molded parts, and the light buckets are compatible with the separately sold 97054 LED Light Unit Series. By installing four clear LEDs at the front and four clear LEDs at the rear, the body is transformed into an even more realistic replica of the actual vehicle. (Recommended LED Light Units: 97054-4C × 2)
●Equipped with mesh wheels fitted with low-profile tires featuring an original semi-slick tread pattern that delivers all-around performance.
●Factory-assembled Readyset package only requires 4 x AA alkaline batteries for the transmitter, and battery with charger for the chassis.
●Full ball bearings that reduce drive loss equipped throughout the drive system.
●Features KS202W waterproof steering servo.
●Sealed differential and transmission deliver reliable performance, even on dusty parking lot surfaces.
●Full-time 4WD touring chassis with shaft drive that allows anyone to enjoy driving.（FZ02).
●Equipped with a plated dummy brake disc and a painted brake caliper to improve the sense of scale.
●Uses button screws with hexagonal holes in each part. Reliable tightening torque can be applied, and maintenance is possible with even fewer tools.
●Since the motor mount has mounting holes according to the pinion gear, troublesome backlash adjustment is unnecessary. Supports from 29T to 37T.
●Performance can be further enhanced by installing various optional parts.

The ultimate road-going model bearing the legendary "RS" (Rennsport, meaning racing sport) designation, a title reserved for a truly special breed within the 911 lineup. It features a racing-inspired silhouette engineered for the pinnacle of aerodynamics, clad in dedicated aero parts including a massive rear wing.

Original low-profile semi-slick pattern tires produce superior performance.

The headlights, front position lamps, and taillights are made from transparent injection-molded parts, and the light buckets are compatible with the separately sold 97054 LED Light Unit Series. By installing four clear LEDs at the front and four clear LEDs at the rear, the body is transformed into an even more realistic replica of the actual vehicle. (Recommended LED Light Units: 97054-4C × 2)

Newly designed concealed body mounts mean the fixing posts and pins do not protrude externally, allowing a more realistic appearance of the exquisite ultra-scale body.

Completely new chassis realizes low center of gravity with its simple, functional design. Featuring an integrated gearbox that optimizes torsional rigidity of the main chassis, the nylon material reduces weight while improving impact resistance. Each key component has been reinforced in this simple design without upper deck.

Features a reduced number and variety of screws and parts, and consolidation of frequently used screws into the same size. Most screws are flat head screws that can be removed with a 2.0mm hex wrench for easy disassembly.

Handling factors such as bump steer and scrub radius are optimized on front suspension. Simple ball-connected steering knuckle promises reliable control movement. Interchangeable on both front and rear left-right hub carriers optimize spare parts utilization and improve maintenance efficiency.

Includes choice of two offset brake disc wheel hubs with dummy calipers (for visual styling) that provide compatibility with 190mm and 200mm body widths.

Oil shocks mark an evolutionary step up from previous models Oil shock is newly designed. Optimal front-rear geometry and balance simultaneously delivers both light handling and precise control.

Standard spur and pinion gear setting is 68T and 32T, but 9 pinion gear settings can be used from 29T – 37T to produce a wide range of gear ratio settings. The new fixed gear mesh motor mount has holes for use with each different pinion gears. Just simply mount the motor directly to the hole locations corresponding to the pinion gear. No gear mesh adjustment is necessary.

Technical Data

■Length 475.9mm
■Width 203.5mm（Body width * excluding mirror）
■Height 132.6mm
■Wheelbase 260mm
■Tread（F／R） 174mm
■Tires（F／R） φ66×25mm
■Gear Ratio 6.54：1
■Weight 1,650g  (approx.)
■R/C system Syncro KT-231P+
■Motor G14L

Kit Contents

<Kit Contents>
●Completed chassis with R/C radio installed
●Factory assembled body complete with color scheme
●Syncro KT-231P+ transmitter
●Hexagonal wrench
●Spanner
●Setting change parts

Requirement to Run

●4 x AA batteries for transmitter
●Battery for chassis (recommended: 7.2V Ni-MH battery)
※Recommendation :SPEED HOUSE 7.2V 22HV Ni-MH Battery 71322B
SPEED HOUSE 7.2V 36HV Ni-MH Battery 71324B
●Charger for battery for chassis
※Recommendation :SPEED HOUSE C-02B AC PEAK CHARGER　72002B
7.2V USB Charger for NiMH 72203
●Tools
