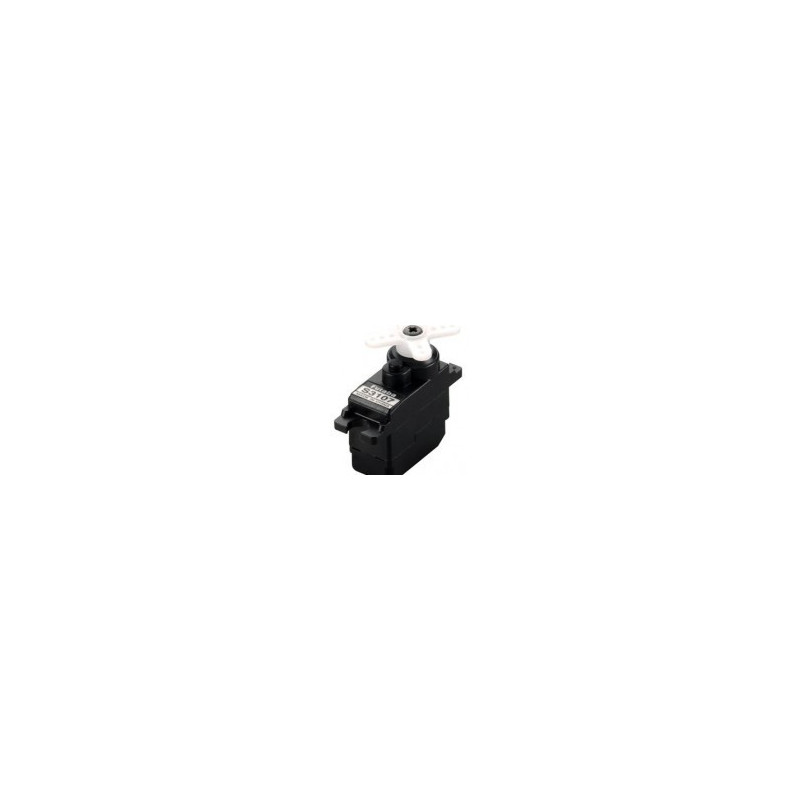

S3107– Micro Analog Airplane Servo

For Small Electric Powered Models (01102254-3)

SPEED:
0.12 sec/60°at 4.8V

TORQUE:
1.2 kg/cm at 4.8V

SIZE:
21.8 mm x 11 mm x 19.8 mm

WEIGHT:
9 g

The S3107 servo is a micro servo for small electric motor airplanes. Pay special attention to the following points:

• Do not use with gas powered engine models or other models that require torque.
• Using supply voltage higher than 4.8V or applying high loads to the servo will shorten the life.
• Always use the servo horn specifically designed for this micro servo. Do not use conventional servo horns.
• Excessive force or shock to servo horn may damage ultra mini precision gears inside servos.
