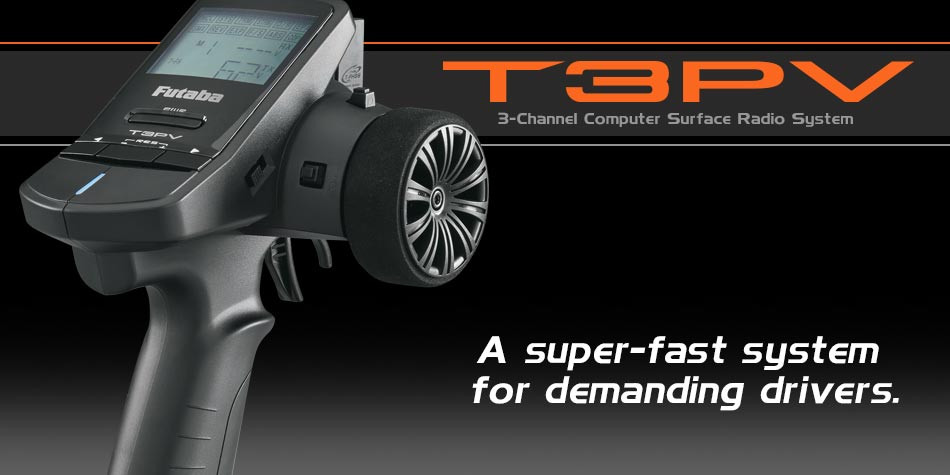

FP3PV314SBE Futaba 3PV 1XR314SBE Receiver 2.4G 3+1 Channel T-FHSS Radio System

SGD182.35
Tax included
Quantity
There are not enough products in stock

Features
    • FHSS/S-FHSS/T-FHSS* protocols

    • 10-model memory

    • Model Reset

    • Model Name (4-Character)

    • Low Battery Alarm

    • Link Mode (T-FHSS only)

    • DT3 Selection

    • SW1

    • Steering Trim

    • Throttle Trim

    • Channel 4 Trim

    • Sub Trim

    • Steering Dual Rates

    • Steering End Point Adjustment
 spacer
    • Throttle End Point Adjustment

    • Channel 3 End Point Adjustment

    • Channel 4 End Point Adjustment

    • 4WS/Brake Mixing

    • Steering Servo Reversing

    • Throttle Servo Reversing

    • Channel 3 Servo Reversing

    • Channel 4 Servo Reversing

    • Steering Exponential

    • Throttle Exponential

    • Throttle Fail Safe

    • ABS Function

    • Model Data Copy

    • Auto Power-Off after 10 minutes

*T-FHSS available only with R304SB receiver.


Transmitter Specifications:
Type: 3-Channel FHSS/S-FHSS/T-FHSS*
Includes: 3-Channel R304SB or R203GF Receiver
Requires: (4) "AA" alkaline batteries, or 6.6V 1900mAh LiFe battery (HCAM6521), or 6V NiMH Battery (FUTM1484)

R304SB Receiver Specifications:
Type: 3-Channel FHSS/S-FHSS/T-FHSS
Input Power: 4.8V-7.4V
Dimensions: 1.38 x 0.91 x 0.33 in (35.1 x 23.2 x 8.5 mm)
Weight: 0.23 oz (6.6 g)

R203GF Receiver Specifications:
Type: 3-Channel FHSS/S-FHSS
Input Power: 4.8V-7.4V
Dimensions: 1.37 x 0.9 x 0.33 in (33 x 23 x 8.5 mm)
Weight: 0.21 oz (6 g)
FP3PV314SBE
