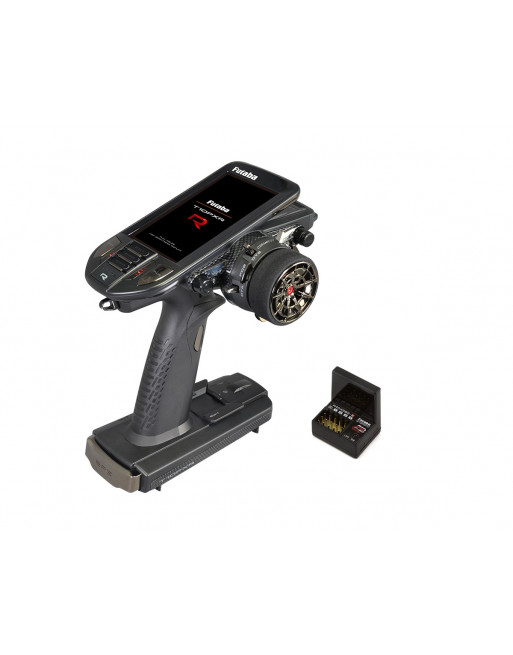

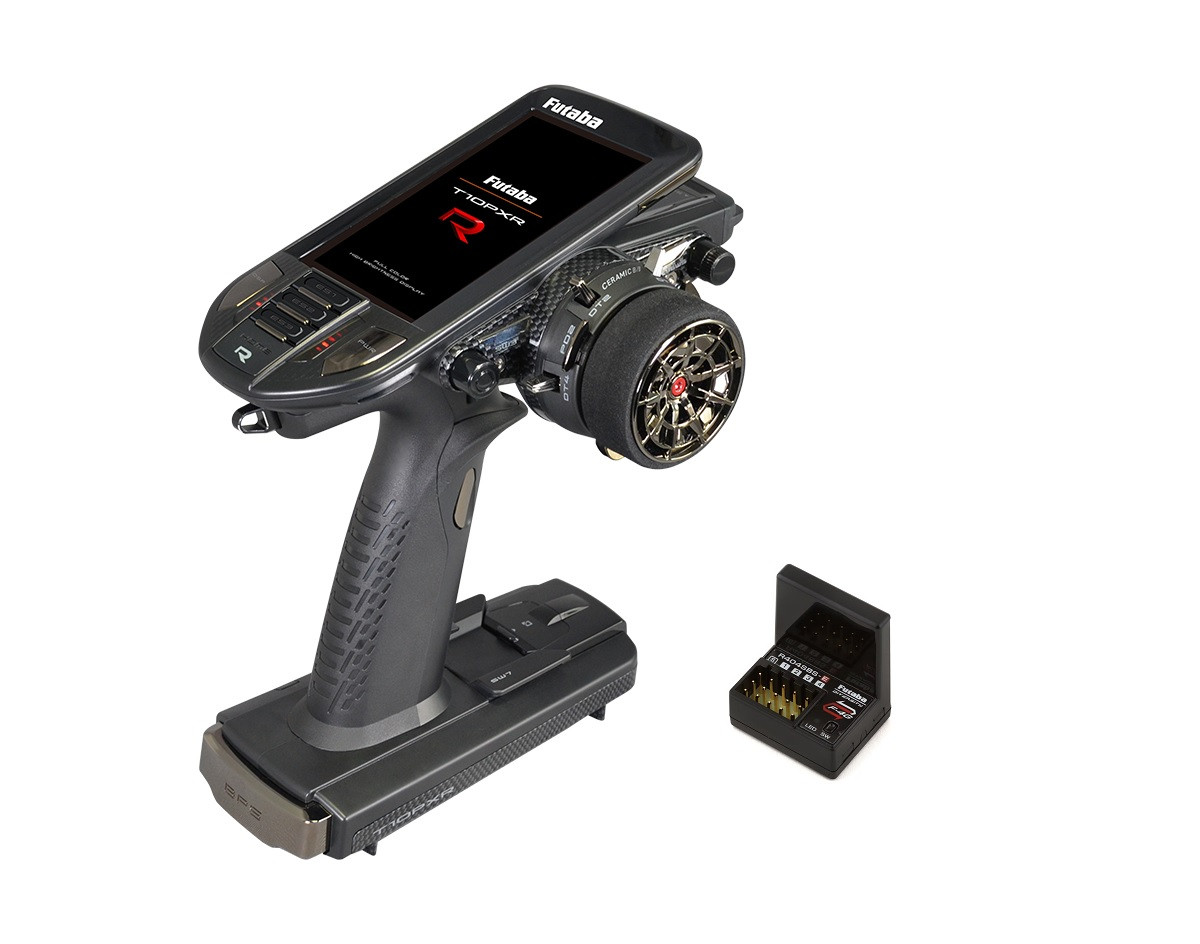

FP10PXRE 10-Channel 2.4GHz T-FHSS Radio System w/Receiver R404SBS-E
SGD959.00
Tax included
High-end model with top-speed response function
The T10PX, a favorite among many top drivers, has finally arrived with the "R" designation. The meticulously crafted "T10PXR" symbolizes evolution for competing on a new stage. ★The T10PXR is a transmitter compatible with "F-4G", "T-FHSS SR", "T-FHSS", "S-FHSS", and "MINI-Z". ★The R404SBS and R404SBS-E are receivers compatible with "F-4G".
Product Features
● New mechanism "ASA (Adjustable Steering Angle Adapter)" adopted
The steering wheel's range of motion can be adjusted steplessly from 32° to 36°. This allows for easy fine-tuning of the steering feel to suit any situation.
●Ceramic ball bearings are used in the wheel and trigger section.
Compared to conventional metal ball bearings, the use of ceramic bearings, which offer high precision, low friction, and high durability, results in an even smoother operating feel.
● Optimization of signal processing design for the control system
Achieving a high level of balance between agility and smoothness in response to user input. Resulting in fast response and an easy-to-use operating feel.
Even the printed circuit board is uniformly red. This is a product where passion for the color red is evident even in the hidden details!
● Feeling Mode expanded to 15 levels
Featuring a new feel mode with 15 levels of adjustment, it's possible to achieve the optimal operating feel in all conditions.
● Equipped with the new "ST (Steering) Trim Memory" function.
The steering trim can be instantly moved to a preset trim position. This makes trim adjustment, which is essential in long-distance races such as those involving engine-powered cars, much easier.
● Completely redesigned the editing area.
Designed for enhanced editing comfort, it offers faster and more precise operation. Additionally, the PILOT LED can be customized to your preferred color from seven options.
● Premium black plating
It creates a chic and sophisticated appearance that enhances its presence. Furthermore, it reduces glare from sunlight outdoors, allowing for greater concentration while driving.
● Optimization of center of gravity balance
By reviewing the internal configuration, layout, and weight distribution of the transmitter, operability has been improved with a well-balanced grip feel. In particular, the material of the LCD mounting bracket has been changed to glass fiber reinforced resin (GF), achieving weight reduction, optimal weight distribution, and increased rigidity.
● Thorough weight reduction reduces driving fatigue.
• Titanium screws: Titanium screws are used for fastening the housing.
• Magnesium material: Magnesium is used for the rigid components that support the substrate and casing. This also contributes to high rigidity.
- In addition, weight reduction was achieved by reviewing the detailed shape.
● Front steering housing and rear housing made of glass fiber reinforced resin (GF)
The housing, made of highly rigid glass fiber reinforced resin (GF), is finished in a luxurious carbon-fiber-like style, and supports the steering base and rear handle mounting points, resulting in confident handling. Furthermore, reinforced resin (GF) is also used in the main frame, ensuring excellent rigidity and durability.
● Expansion of the trigger stopper lineup
Four levels of adjustment are available: 5%, 10%, 15%, and 20%.
● TFT (Two-Finger Throttle Lever)
It comes with an S-shaped brake lever. The trigger is operated by pinching it between your index and middle fingers.
This reduces finger fatigue during prolonged braking. Furthermore, the zero clearance between the fingers during braking allows for quicker and more stable braking than before.
● Dimpled grip rubber (3 sizes)
The grip rubber now features a dimpled surface, ensuring a comfortable grip even in tense situations.
(From left to right, the images show the L (optional accessory sold separately), M, and S sizes attached.)
● Revised shape of the 3-position switch, D/R, and ATL levers
The switch knob shape has been redesigned for improved operability.
● Trigger unit angle adjustment (stepless)
The tilt of the trigger unit, which previously had three adjustment levels, can now be adjusted steplessly.
(The photo shows the image shifted to the right.)
● Non-telemetry ramp: The red color, the signature color of "R" , clearly demonstrates compliance with the regulations.
●Can be equipped with a non-contact charger
A wireless charger (LF-02) is available as an optional accessory to eliminate the hassle of dealing with cables during charging .
Features and Specifications
Entry Menu
●Receiver settings ( F-4G/T-FHSS SR/T-FHSS/FHSS /MINI-Z EVO/MINI-Z EVO 2/MINI-Z FHSS compatible)
Please refer to this page for a list of our receiver compatibility for each system .
● Acceleration
●Condition
● Idle Up
●Channel limiter: Allows you to limit the maximum range of motion of the servo.
●Channel settings: This function allows you to assign steering or throttle to any channel.
● Throttle mode
● Subtrim
●Trim/Dial Settings
● Switch settings
● Endpoint, Reverse, D/R, ATL, Failsafe, ServoView
Model Menu
●Model selection, model copy
●Model Name
●Model Type
●Data Reset
Mixing Menu
● Steering Mixing
●Brake mixing
● Gyromixing
● 4WS Mixing
● Dual ESC
●CPS Mixing (1,2,3): When using CPS-1 (optional), you can set the LED lighting pattern, etc.
●Tank Mixing: This is a mixing kit for tracked vehicles such as tanks.
● Program Mixing (1, 2, 3, 4): It is also possible to set the mixing master to telemetry.
●Tilt mixing: This is an effective mixing method for boats.
●Winch Mixing: This is an effective mixing method for crawler-type vehicles.
Racing Menu
●ST Trim Memory ( New Feature ) : Allows instant movement of the steering trim to a pre-set trim position. Makes trim adjustments easier during long-distance races with engine-powered cars, etc.
●Curve (EXP)
●Speed: Steering and throttle can be set individually. The throttle also features a "Curve" mode, which is effective for drag racing.
● Traction control
●Feeling: If the response is too sensitive, a milder tuning is added to make it easier to control.
●ABS
● Start
● Engine cut
● Telemetry menu, sensor list
● Drag racing (transbrake): This is a mixing technique that is effective in drag racing.
Accessories Menu
● Timer, lap list
● Home/ES1/ES2/ES3 Button Settings: You can set the functions of the four buttons in front of the display to your preferred functions.
●Home screen settings: You can change the settings to servo view, telemetry view, vehicle photo, etc.
● Index Table: You can display the index table for DD (PAN) cars.
● Gear Ratio Chart
● S.BUS Servo: You can configure S.BUS servos.
●MC (ESC) Link, Gyro Link: Allows you to configure the ESC and gyro.
System Menu
●ST Angle Check Function ( New Feature ): Used as a guideline for the angle when adjusting the maximum range of motion of the steering wheel.
●Display settings: You can adjust backlight, touch panel calibration, etc.
●Audio: You can adjust the volume of operation sounds for each switch, alarm sounds, and telemetry guide.
●Battery settings: By setting the battery type, the appropriate battery alarm voltage will be set.
●Adjuster: Used to correct the steering wheel and throttle trigger.
● Total Timer
●Receiver update, servo update: Updates can be performed via the transmitter.
● System Information
【accessories】
● Transmitter (LiFe) battery FT2F1100B x 1 pc *Pre-installed at the time of shipment (connector has been removed)
(The separately sold LiPo battery LT2F2000B can also be used)
●Charger LBC-34D P × 1 piece
● ASA (Adjustable Steering Angle Adapter) x 1
● Wheel adapter 32° × 1 piece
●APA (Wheel Position Adjustment Adapter) S/M (1 each) (Largeest size L is sold separately as an option)
●TFT (Two-Finger Throttle Lever) × 1
●Brake lever L × 1 piece
●Angle spacer 5° × 1 piece (※10° is a separate option)
● Throttle stroke angle reduction spacers: 5%, 10%, 15%, 20% (1 of each)
●Large diameter steering wheel × 1
● Li-Po spacer × 1 (for LT2F2000B alignment)
● Trigger guards: 1 each for right and left
● Grip rubber S x 1 (M is pre-installed at the time of shipment *L is a separate option)
● Blind paddles × 2
● Mounting screw set × 1 set
●Hex wrenches: 1.3mm, 1.5mm, 2mm, 2.5mm (1 of each)
● Wheel springs: Soft/Normal/Hard (1 of each)
● Trigger springs: Normal/Hard (1 each)
