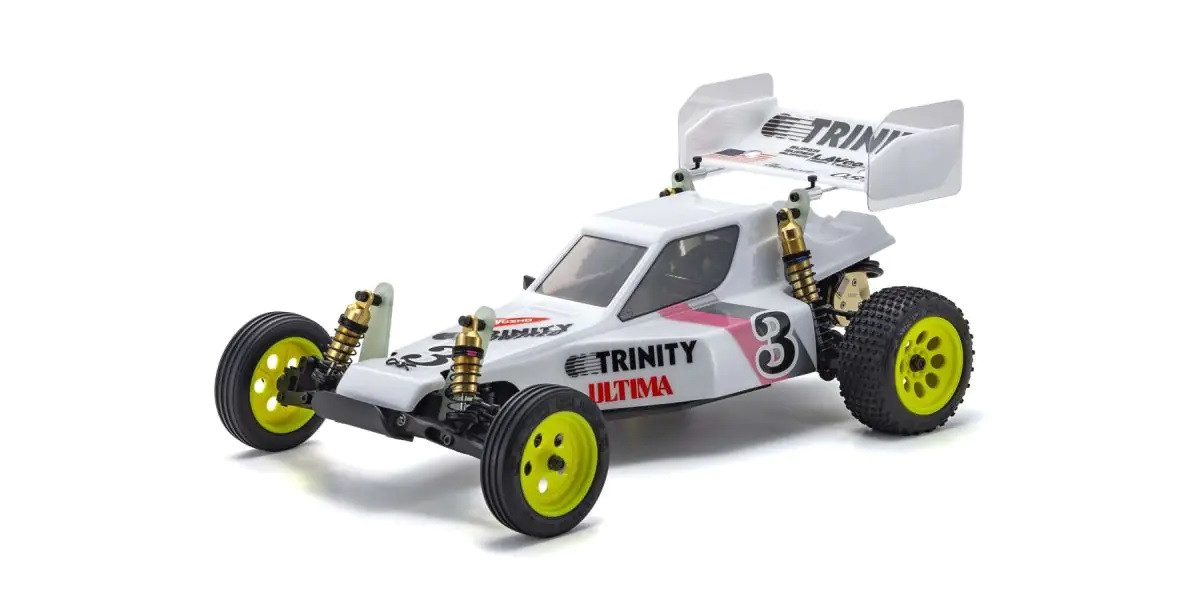

30642 1:10 Scale Radio Controlled Electric Powered 2WD Racing Buggy '87 JJ ULTIMA REPLICA 60th Anniversary limited

SGD665.10

■Length 405mm
■Width 250mm
■Height 172mm
■Wheelbase 270mm
■Tread (F/R): 206mm / 214mm
■Tire(F/R): φ75×20mm / φ82×36mm
■Gear Ratio 8.64:1
■Weight approx1,470g(with GAB4202)
■Motor 540 class size (sold separately)

<Kit Contents>
●Chassis kit
●Unpainted body
●Decal
●60th anniversary sticker
●Hexagon wrench(1.5/2/2.5mm)
●Cross wrench
●shock wrench
●Grease
●Shock oil
●Ball Differential Grease

< Required for operation >
●2ch 1 servo R/C system for cars
●540 class motor
●ESC  (推奨:37051B ル・マン 240S ESC )
●Battery for chassis
●Charger for battery for chassis
●Batteries for transmitter
●Paint for polycarbonate body

Quantity
There are not enough products in stock

Most sought after World Championship buggy
‘JJ ULTIMA’ recreated in all its glory!

American Joel Johnson won his first 2WD class world title at the 2nd Electric Off-Road World Championship in England in 1987 driving a modified Kyosho ULTIMA. Also, TQ’ed this event and finished 1st and 2nd and 3rd.This became known as the ‘JJ Spec’ and was popular with its custom suspension, main chassis and front-rear shock stays that enhanced performance and styling. Only third-party conversion kits were available at the time and even then, it was extremely difficult to completely reproduce the JJ specifications. Now the ‘JJ Spec’ is honored as the 13th model in the Vintage Series to commemorate Kyosho’s 60th anniversary.

●The 13th model of the Kyosho Vintage Series is a recreation of the World Champion racer that did not exist as a kit back in 1987.
●Each component has been faithfully designed and manufactured based on the specifications of the championship winning machine.
●While based on the original model, each part has been enhanced and modernized to meet the requirements of the latest RC systems & power sources.
●Body from the Tomahawk is included, which is as per the World Champion machine. Original as well as commemorative decals are also included.
●Turnbuckle tie rods allow precise adjustment of camber and toe angles, just like the original.
●Rear gearbox is equipped with ball differential that produces traction stability without affecting road grip.
●Rear drive incorporates a universal swing shaft that enables improved drive efficiency and maneuverability.
●Soft front and rear tires are included for racing performance. Inner sponges are also built into the front tires and deliver powerful grip and control.
●In addition to the standard type included in the kit, more modern 2.2-inch standard wheels can also be installed.
●Unassembled chassis kit includes wheels and tires for front and rear, unpainted body, and rear wing.
●Equipped with +2mm offset rear wheel hub. Wide tread setting is available when combined with the included 1mm spacers.

Special website here >
technical-image-01

Features solid carbon graphite main chassis and FRP front-rear shock stays. Servo stay and battery holder have also been added for ease of assembly and versatility.




technical-image-02

Equipped with the same body used on the Tomahawk 2WD buggy, just like the original. Silver & pink stripe decals with a variety of logos recreate the signature color scheme of the Joel Johnson Spec. Side mirrors from the original have also been recreated.
Trinity®︎ logo is a registered trademark of Horizon Hobby, LLC




technical-image-03

FRP shock stays flexibly absorb impact from the shock units and follow the original design in shape and color. Standard gold shocks combine with newly developed medium soft (MS) front springs.




technical-image-04

Rear shocks are also the same gold type as on the original. Medium Hard (MH) rear springs work in combination with the MS front springs to deliver exceptional maneuverability and performance over surface gaps.




technical-image-05

In place of the mini steering servo that was fixed with double-sided tape, the modern version of the ULTIMA uses a servo mount compatible with modern low-profile servos that are popular today. The shape of the servo saver arm has also been changed.




technical-image-06

The front skid on the carbon chassis improves clearance over surface gaps while front caster angle setting optimizes handling characteristics.




technical-image-07

Newly designed front wheel shaft with kingpin offset delivers improved straight line running stability as well as controlled initial steering response.




technical-image-08

Stickers that can recreate the atmosphere of that time when attached to the motor are included.Gunmetal anodized aluminum motor guard is laser-printed with the Kyosho 60th anniversary logo, which is exclusive to the special limited-edition model.




technical-image-09

Polycarbonate rear wing and side plates have been recreated as per the original JJ specifications. The large side plates deliver improved stability to fully recreate the style and drive feeling of the original.
