MZW124 X-SPEED MINI-Z Motor Checker

SGD172.16
Tax included

[Contents]

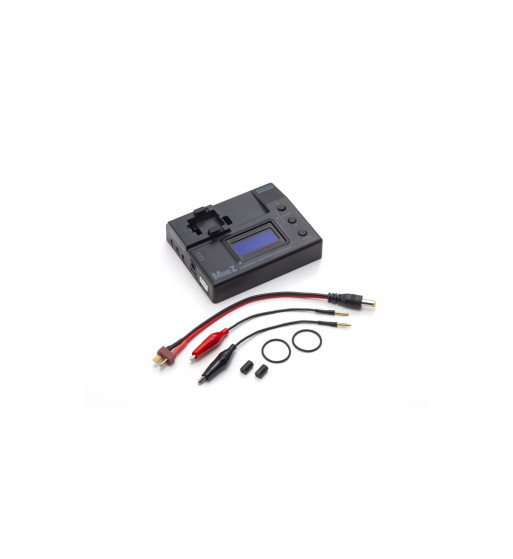

・ Motor checker body
・ Power cable with super plug ・
O-ring for fixing motor x2 (1 is spare)
・ Rotation adapter x2 (1 is spare)
・ Wiring cable with alligator clip for brush motor
・ Instruction instructions book

[Items that need to be purchased separately] -Battery
motor or brushless motor for minutes (measurement target)
-Battery with super plug from 5.5V to 7.4V (maximum voltage up to 8.4V)
  or MZW124-02 AC adapter (6V- 2A / For Japan)

Quantity
There are not enough products in stock

A motor checker that can accurately measure the rotation speed of brush motors and brushless motors for the MINI-Z series .

・ A rotation adapter with a reflective seal can be attached to the shaft of the motor to accurately measure the number of motor lines.
・ The input power supply voltage is compatible with 5.5V to 8.4V, and a super plug compatible power cable is included
   or sold separately. Uses an AC adapter (6V-2A / for Japan)
・ Includes wiring with an alligator clip that allows you to easily connect the terminals of the brush motor.


-At the time of brush motor measurement-
"BREAKIN" mode

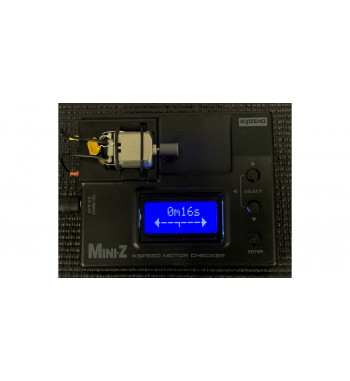

-Measure the state of the motor at any voltage from 1V to 5V (in 1V increments) -Display
voltage / current consumption / rotation / elapsed time / performance
* Performance: Start rotation Display the status of the commutator in comparison with time


"CUP MODE" mode
-Measurement mode for vehicle inspection of MINI-Z Cup-
Measurement starts automatically when it starts, and reverse rotation is measured following forward rotation.
　After the measurement is completed, the difference between the forward rotation speed and the reverse rotation is displayed. , It is possible to easily determine whether the motor is compatible with vehicle inspection.


-When measuring brushless
motor- "MANUAL" mode

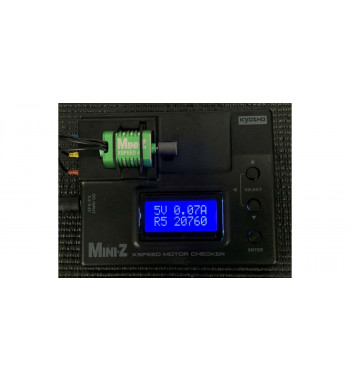

-Measure the state of the motor at any voltage from 2V to 5V (in 1V increments) -Rotation
speed and current value measured by both optical and electrical signal methods

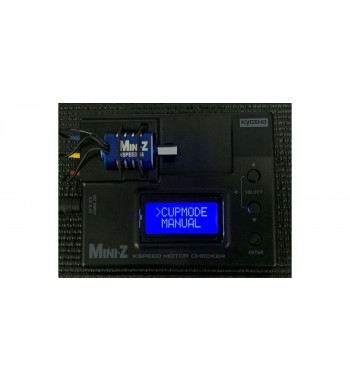

"CUP MODE" mode
・ Minute cup vehicle inspection measurement mode

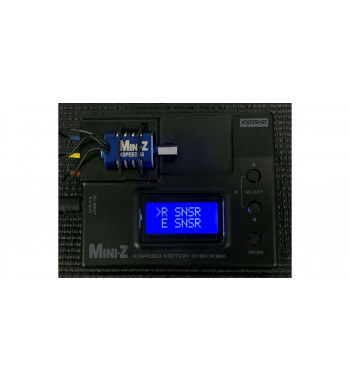

・ You can select whether to measure the rotation speed by optical method or electric signal type

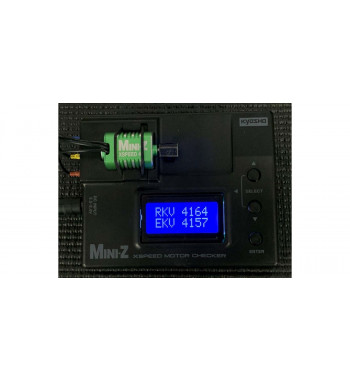

・ When you start, it automatically measures 3 times and displays the rotation speed and KV value
・ The average value of 3 times can be displayed to easily determine whether the motor is compatible with vehicle inspection.
* KV value: Number of revolutions per minute for a voltage of 1V



[Measurable motor]
Brush motor and brushless motor for Minute series
・ Brush motor
  MX016 / MZ9P / MZ9E / MZW301 / MZW301E / MD009P / MDW023
  Other brush motor for Minutes can also be used
・ Brushless motor
   MZ504 / MZ603 / MZ604 / MZ605 / MZ606 / MZW501 / MZW503
   Other brushless motors for minutes can also be used.
