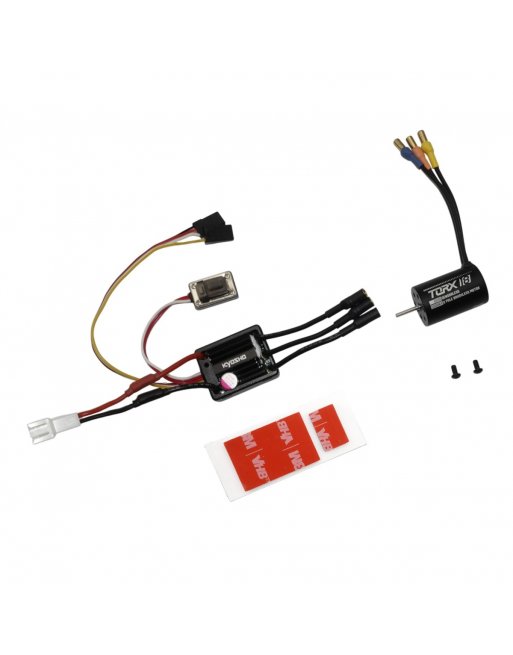

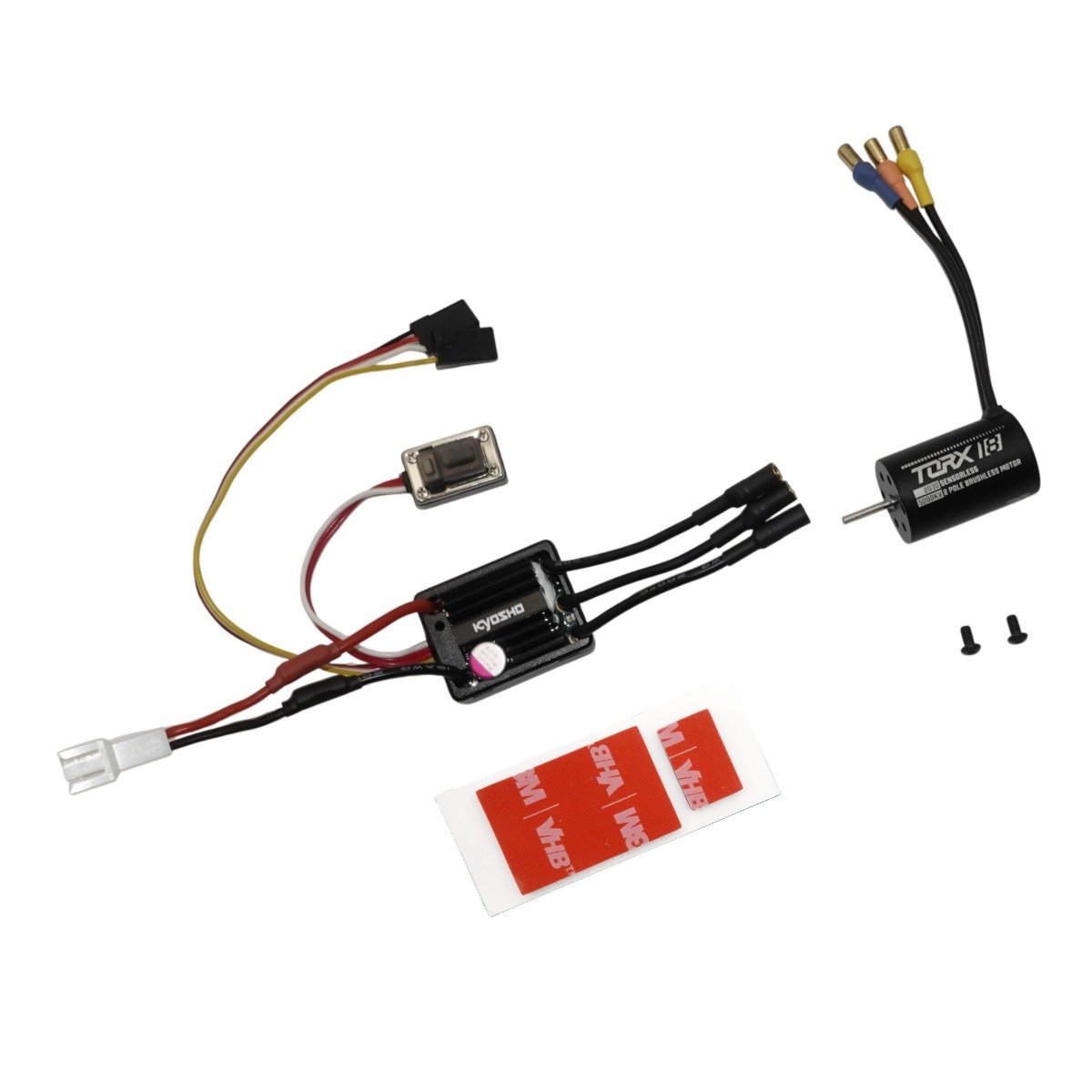

GPW23 Kyosho speed house Hang On Racer Brushless Combo Set

Technical Data

※This technical data shows the performance of the ESC and motor.
Not all of them are compatible with the Hang On Racer.

ESC
KYOSHO SPEED HOUSE BRAINZ 18

Input Voltage: Ni-MH Battery: 6〜9 cell (7.2V ~ 10.8V) or Lipo Battery: 2〜3 cell (7.4V〜11.1V)
Size: 33.4mm(L) x 26.8mm(W) x 15.1mm(H)
Continuous maximum current: 30(A)
BEC Output: 6V / 2A
Weight: 38.5g
Recommended motor size: 270–390 class (up to 8000KV with 2S LiPo / up to 4500KV with 3S LiPo)
Protection function: Low voltage cutoff function / Overheating protection function

Motor
KYOSHO SPEED HOUSE TORX 18

KV: 5000(rpm/V)
Input Voltage: Ni-MH Battery: 6〜9 cell (7.2V〜10.8V) or Lipo Battery: 2〜3 cell (7.4V〜11.1V)
Weight: 42g
