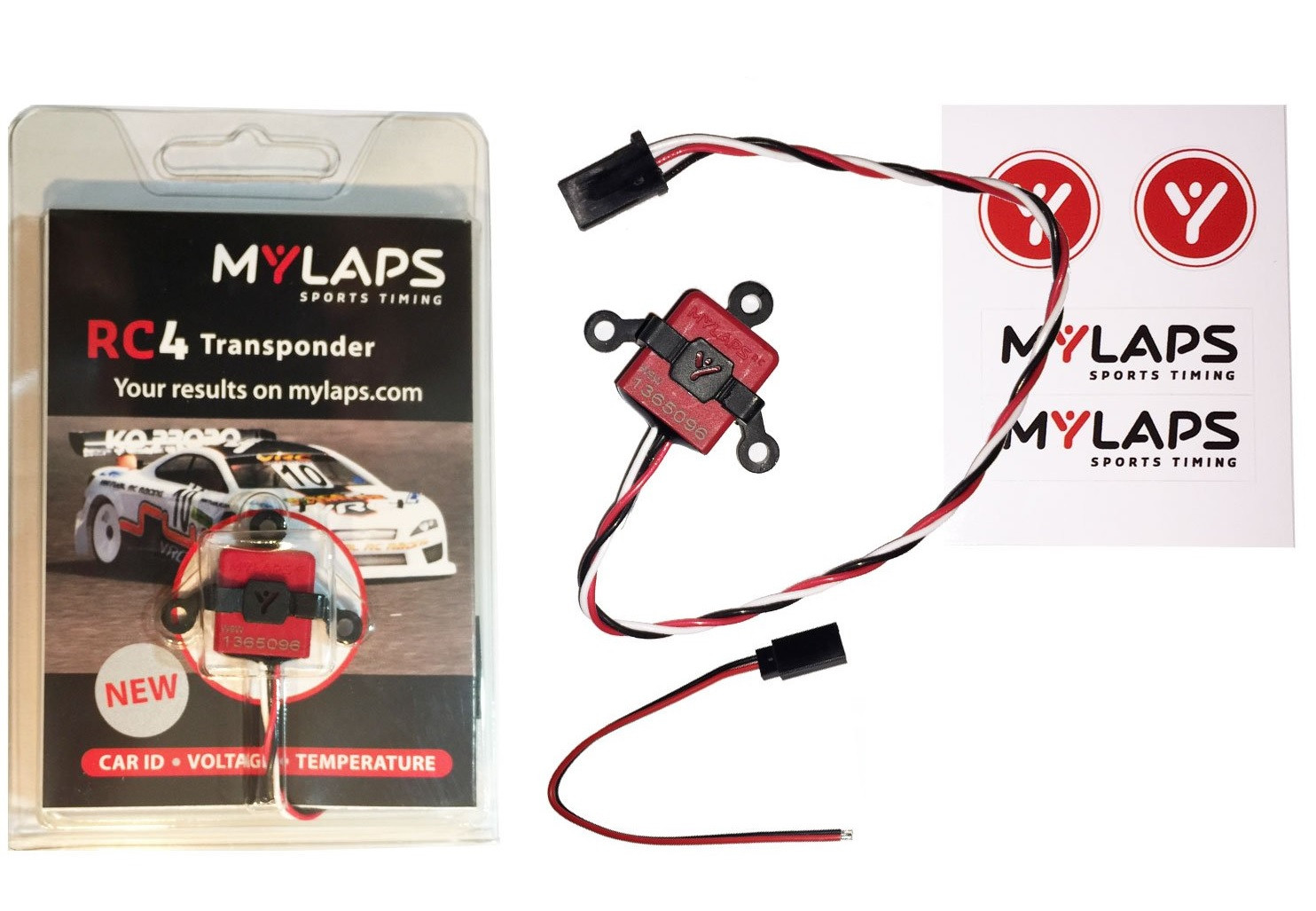

MYRC4 Mylaps RC4 Transponder for RC Car

MYLAPS RC4 Direct Powered Transponder For RC4 Decoder w/ 3 Wires #10R120

Description:

After years of research and development we are proud to introduce the new MYLAPS RC4 platform for RC timing and data services. In 1982 we invented automatic timing solutions for the worldwide RC community, and since then we kept improving it. Now, in 2009, we bring an entirely new platform to further enhance your race experience.

The MYLAPS RC4 platform has the following elements:

• An enriched communication protocol: the standard on which we develop all new RC products and services
• A new series of transponders, based on a complete redesign
• A new timing system for clubs and organizations

Feature:

• For: RC Cars

Specification:

• Dimensions: 16 x 19 x 6mm (W x L x H)
• Weight: 4g
• Weight include Holder: 4.7g
• Humidity: Max. 90% relative
• Max. Speed: 120 km/h (75 mph)
• Temperature Range: 0° - 50°C (32° - 122°F)
• Signal Transfer: Magnetic Induction
• Code Resolution: 1.5ms
• Max. Transponder Position: 15cm
• Power: Feed from free receiver channel (ch3 or batt)
• Connection Plug: Connect using a standard Servo plug
• Power Consumption: 14mA @ VDC
• Operating Voltage: 3.0 - 16VDC
• Wire Insulation: Aerospace/MIL-spec high-temp PTFE (Gasoline/Nitro resistant)

Include:

• MYLAPS RC4 Direct Powered Transponder For RC4 Decoder w/ 3 Wires (1 Pc)
• Sticker (1 pc)
• Manual (1 pc)
