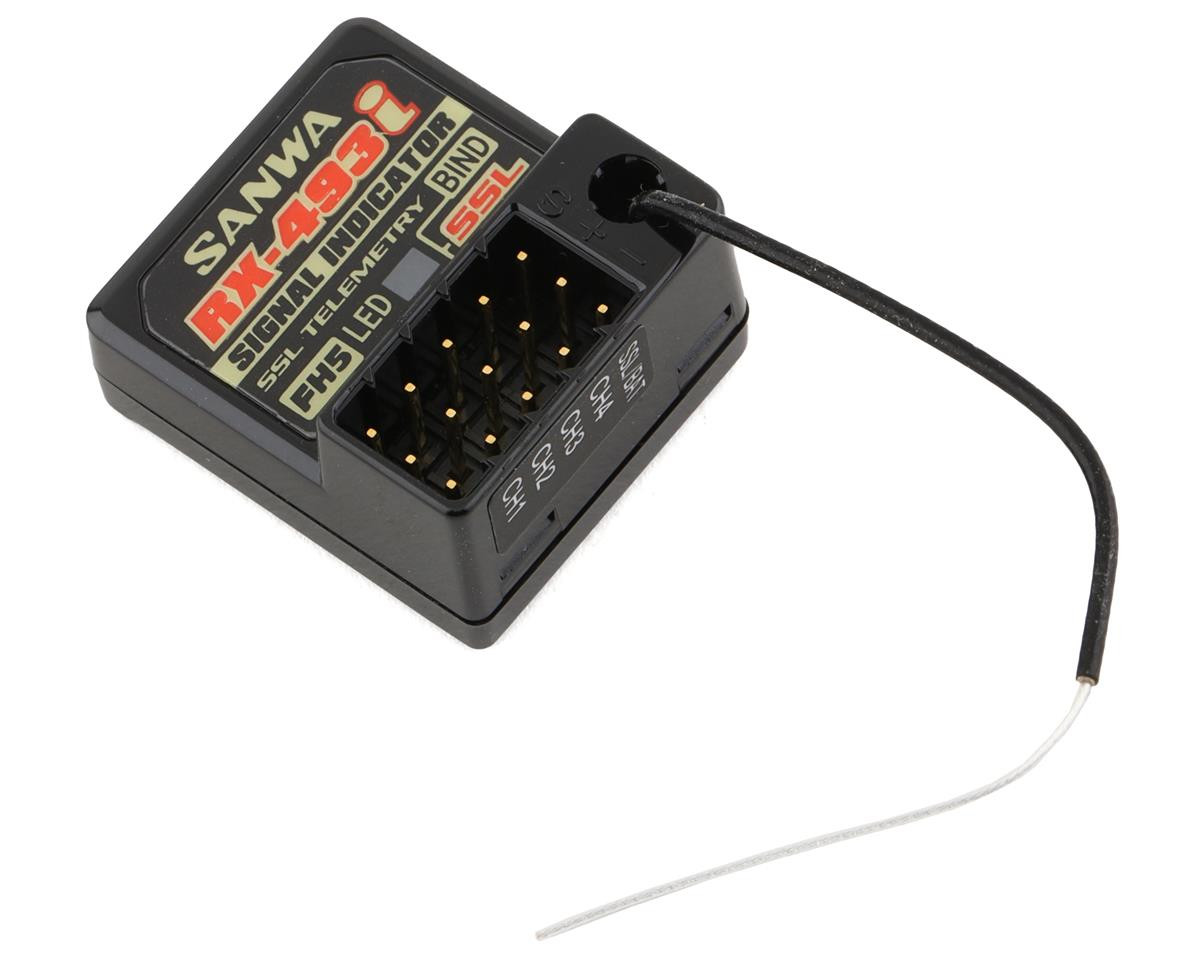

SW41376A Sanwa/Airtronics RX-493i M17/MT-5 2.4GHz 4-Channel FHSS-5 Telemetry Receiver
SGD151.79
Compact receiver
Waterproof
Plug in Bind
Short Coaxial Antenna
●Indicator Function compatible
Indicator function can be checked signal strength connected transmitter.
The indicator function can be used for finding problems as incorrect receiver placing
and finding the best receiver position for transmitter.
By SANWA technical development, indicator function can be checked signal
strength without any effect with response.
●2.4 GHz FHSS5 Spread Spectrum System 4ch
●Compatible with Telemetry
※Cannot connect RPM sensor and Temperature sensor
To measure RPM and Temperature is only
combine with SUPER VORTEX series
●Compatible with SSL (SUPER VORTEX Series, etc...)
●Ultra Response Mode (SUR)
●Extreme Response Mode (SXR)
●Waterproof
●The smallest and most light receiver in the class
| Frequency |
2.4 GHz FHSS5 |
Channel |
4ch |
| Nominal Input Voltage |
3.7~7.4 V |
Dimensions |
26.0 x 23.2 x 14.0 mm |
| Weight |
6.2 g |
Compatible radio |
M17, MT-5 |
SW41376A
3 Items
Specific References
Compact receiver
Waterproof
Plug in Bind
Short Coaxial Antenna
●Indicator Function compatible
Indicator function can be checked signal strength connected transmitter.
The indicator function can be used for finding problems as incorrect receiver placing
and finding the best receiver position for transmitter.
By SANWA technical development, indicator function can be checked signal
strength without any effect with response.
●2.4 GHz FHSS5 Spread Spectrum System 4ch
●Compatible with Telemetry
※Cannot connect RPM sensor and Temperature sensor
To measure RPM and Temperature is only
combine with SUPER VORTEX series
●Compatible with SSL (SUPER VORTEX Series, etc...)
●Ultra Response Mode (SUR)
●Extreme Response Mode (SXR)
●Waterproof
●The smallest and most light receiver in the class
